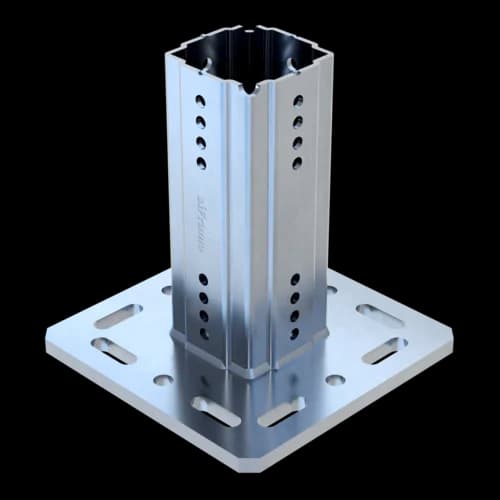

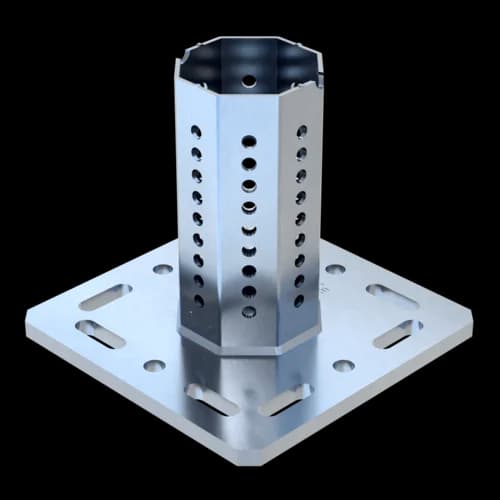

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Certification
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Info | Type | Min. flange width | Weight | Quantity | Part number | |
| WBD-4KT 80/120-F100 HCP | 80.00 mm | 6.196 kg/pcs. | 1 pcs. | 113075 | ||
| WBD-8KT 80/120-F100 HCP | 80.00 mm | 5.28 kg/pcs. | 1 pcs. | 113079 | ||

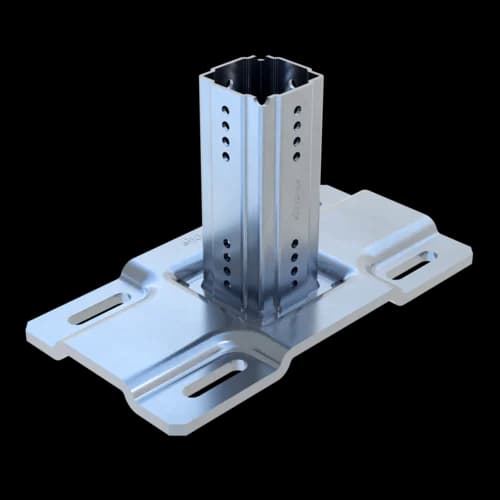

| WBD-P-4KT 121/160-F100 HCP | 121.00 mm | 9.7 kg/pcs. | 1 pcs. | 117167 | ||
| WBD-P-4KT 161/200-F100 HCP | 161.00 mm | 11.2 kg/pcs. | 1 pcs. | 117168 | ||
| WBD-P-4KT 201/310-F100 HCP | 201.00 mm | 10.3 kg/pcs. | 1 pcs. | 117169 | ||
| WBD-4KT 121/160-F100 HCP | 121.00 mm | 10.537 kg/pcs. | 1 pcs. | 113098 | ||
| WBD-4KT 161/200-F100/160 HCP | 161.00 mm | 11.95 kg/pcs. | 1 pcs. | 113099 | ||
| WBD-4KT 201/300-F100/160 HCP | 201.00 mm | 11.14 kg/pcs. | 1 pcs. | 113100 | ||
