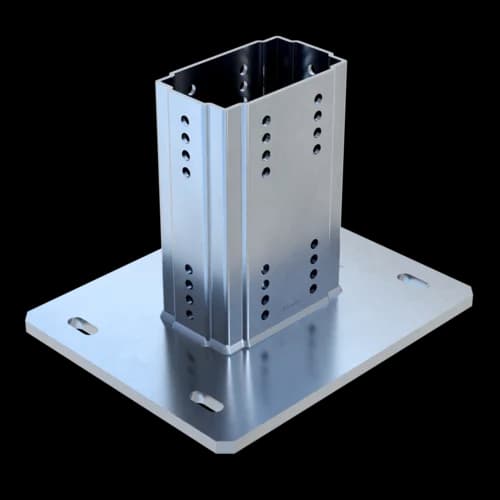

End Support WBD-4KT 121/160-F100 HCP
Group: A821
Part number 113098
Technical Data
Load range
-VX,perm. | 68,20 kN |
VX,perm. | 68,20 kN |
-VY,perm. | 67,90 kN |
VY,perm. | 67,90 kN |
-VZ,perm. | 79,20 kN |
VZ,perm. | 79,20 kN |
-MX,perm. | 11,3 kNm |
MX,perm. | 11,3 kNm |
-MY,perm. | 13,1 kNm |
MY,perm. | 13,10 kNm |
-MZ,perm. | 8,6 kNm |
MZ,perm. | 8,6 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
