Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).

The Sikla Injection System VMH is a universal chemical fastening for use in uncoated FD/FDE concrete surfaces in LAU systems. The Resin Anchor Rod VMU-A A4 is used for anchoring in WHG surfaces. It can also be used for cracked and non-cracked concrete for anchoring the highest loads. The Resin Anchor Rod VMU-A or a commercially available threaded rod with proof of strength (acceptance certificate 3.1) is used as an anchoring element for this purpose. By means of the dispenser gun the components are injected through the mixer nozzle into the drill hole or with perforated brick into the perforated sleeve. This ensures that the anchoring element is securely anchored to the substrate. The VMH enables fastenings that are repeatedly exposed to high temperatures (+160°C) thanks to high short-term temperatures. The VMH is approved for use under seismic action according to the performance categories C1 and C2.

For wall, ceiling and floor installation of mounting elements in M&E services.

For wall, ceiling and floor installation for mounting elements in M&E services.

Element for fixation to wall, ceiling and floor for installations in M&E services.

Suitable for the quick and easy mounting of components to a concrete soffit or shear wall. The internal dual thread M8/M10 allows for a direct easy connection with the Nail Anchor (e.g. M&E service supports). The reduced drilling depth of 35 mm and the bore dia. of 6 mm minimise the risk of hitting a rebar during installation and reduces the overall cost of drilling.

Suitable for push-through mounting solutions for quick and safe fixation to concrete ceilings or walls in closed rooms - not suitable for damp locations. Easy drilling (6 mm only ) and simple impact mounting.

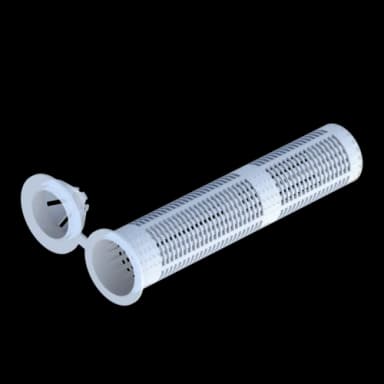

Perforated sleeve to be used in perforated brick in combination with Anchor Rods VMU. The version VM-SH is equipped with a convenient arrester clack, avoiding a slipping into the drill hole. For larger anchoring depths, the metal sleeves VM-SH are available.

For simultaneously punching two holes of ø 10.5 mm into trapezoidal corrugated roofing of a maximum thickness of 1.2 mm, providing for the subsequent mounting of a Sikla Roof Hanger. The optimised transformation allows already with very less strength a high cutting force at the hole punches. Thus several successively piercings or piercings in thicker sheets are possible without problems. Further advantages are: Continous adjustment of the cutting width for application of various profiles from 40 - 100 mm . Continous adjustment of the height position for an exact and uniform alignment of the hole positions taken from the lower edge of the trapezoidal corrugated sheet. After piercing, ejector springs ensure a safe return stroke of the hole punches.

Anchor Rod for pre-installation, to be used with Injection Systems VMU plus, VME plus and VMH. For anchoring in concrete tensile pressure zones or in brickwork. Due to the variable anchoring depth the effective embedment depth can be adjusted to the requested load. Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations (stainless steel version available on request). No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1.

Stainless steel Anchor Rod for pre-installation, to be used with Injection Systems VMU plus, VME plus and VMH. For anchoring in concrete or in brickwork only with VMU plus. Due to the variable anchoring depth the effective embedment depth can be adjusted to the requested load. Suitable for indoor and outdoor use. No special drill required. Small edge and centre distances. Approved for use under seismic action according to the performance categories C1 and C2 (depending on the mortar).

Anchor Rod for push-through and put-before mounting in concrete tensile zones in M&E services and plant construction (for anchoring heavy loads). Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1 and C2 (M10 - M16)

Stainless Steel Anchor Rod for push-through and put-before mounting in concrete tensile zones in M&E services and plant construction (for anchoring heavy loads). Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1 and C2.

The Sikla injection system VME plus is a universal resin injection system for anchoring into coated concrete surfaces in LAU systems (use in existing facilities in connection with WHG surfaces with 'StoCretec WHG System 2', 'Sikafloor water protection system 390N', 'MasterTop 1278' und 'ALKADUR HR LF'). The Resin VMU-A is used for anchoring in WHG surfaces. It can also be used for cracked and non-cracked concrete. To be used with a Resin Anchor Rod VMU-A or a standard threaded rod with proof of strength (approval certificate 3.1). The slow hardening of the injection resin enables a long processing time. The dispenser is used to press the mortar components through the Mixing Nozzle into the drill hole. The injection adhesive cures and gives a secure fastening to the base material. The VME plus does not shrink during curing, resulting in a very tight seal. The VME plus is approved for use under seismic action according to the performance categories C1 and C2.

Pipes up to NB 50 may be attached to trapezoidal metal sheet roofings. For devices or ducts, a load comparable to a NB 50 pipe is used for each holder for proving permissibility. Should it be necessary to fix larger loads, the respective load is to be distributed uniformly between several hangers, e.g. by way of a crossbar. The individual load for each hanger may not exceed the load exerted on a pipe of NB 50. Fixing several pipes to a crossbar is not permissible in such circumstances. Types RM8 and RM10 provide subsequent height adjustment; their revolving knurled nut is safely retained, thus preventing any accidental unscrewing. Type MS is equipped with a sound absorption unit with integrated and secured distance sleeve for soundproof installation according to DIN 4109.

Pipes up to NB 50 may be attached to trapezoidal metal sheet roofings. For devices or ducts, a load comparable to a NB 50 pipe is used for each holder for proving permissibility. Should it be necessary to fix larger loads, the respective load is to be distributed uniformly between several hangers, e.g. by way of a crossbar. The individual load for each hanger may not exceed the load exerted on a pipe of NB 50. Fixing several pipes to a crossbar is not permissible in such circumstances. Types RM8 and RM10 provide subsequent height adjustment; their revolving knurled nut is safely retained, thus preventing any accidental unscrewing. Type MS is equipped with a sound absorption unit with integrated and secured distance sleeve for soundproof installation according to DIN 4109.

Additional safety feature for Beam Clamps supporting tubes of nominal diameter NB 80 and larger, required for installations meeting the Vds standard. Dimensions and material meet the VdS CEA-guideline for Sprinkler systems.

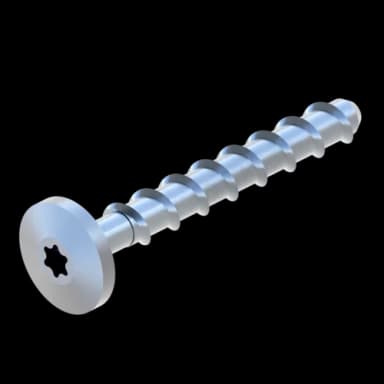

Suitable for quick and safe fixation of Sikla pipe clamps and further components to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements. European Technical Assessment for anchoring in cracked and non-cracked concrete (Option 1). European Technical Assessment for multiple use for non-structural systems in concrete and precast pre-stressed hollow core slabs. ZApproved for applications under seismic impact of category C1 (Types, diameters and anchoring depths are shown in the 'type overview' and ETA-16/0655. Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline). Small edge and axial distance due to low expansion pressure. Low drillling effort

Suitable for quick and safe fixation of Sikla Channels or Mounting Plates to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements. European Technical Assessment for anchoring in cracked and non-cracked concrete (Option 1). European Technical Assessment for multiple use for non-structural systems in concrete and precast pre-stressed hollow core slabs. Approved for applications under seismic impact of category C1 (Types, diameters and anchoring depths are shown in the 'type overview' and ETA-16/0655). Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline). Small edge and axial distance due to low expansion pressure. Low drillling effort.

Suitable for quick and safe fixation of Sikla Channels or Mounting Plates to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements. European Technical Assessment for anchoring in cracked and non-cracked concrete (Option 1). European Technical Assessment for multiple use for non-structural systems in concrete and precast pre-stressed hollow core slabs. Approved for applications under seismic impact of category C1 and C2 (Types, diameters and anchoring depths are shown in the 'type overview' and ETA-16/0655. Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline). Flexible use for high or standard load performances due to 3 anchoring depths. Small edge and axial distance due to low expansion pressure. Low drillling effort.

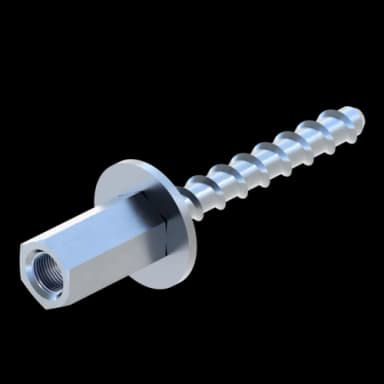

Suitable for quick and safe fixation of Sikla pipe clamps and further components with an internal thread M8 to concrete and masonry ceilings or walls. To be applied in dry rooms not exposed to high corrosion resistance requirements. European Technical Assessment for anchoring in cracked and non-cracked concrete (Option 1). European Technical Assessment for multiple use for non-structural systems in concrete and precast pre-stressed hollow core slabs. Approved for applications under seismic impact of category C1 (Types, diameters and anchoring depths are shown in the 'type overview' and ETA-16/0655. Also fixes into pressure-resistant natural stones and different solid bricks (not part of ETA approval / guideline). Small edge and axial distance due to low expansion pressure. Fixings in isolated ceilings can be realised with the long versions of the TSM-ST). Low drillling effort.

Tool for professional setting of Nail Anchor PN 27 into channel profiles. The bore of Setting Tool PN is adapted to the nail's head, allowing easy positioning in the channel profile.

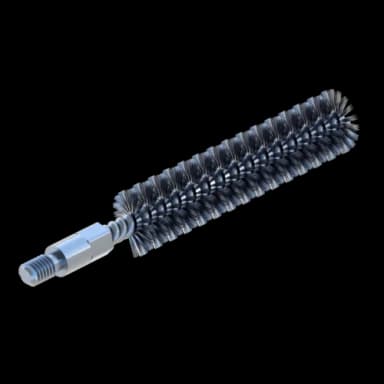

To clean the drill hole.

Single-point mounting element for use with an anchor for floor, wall and ceiling mounting in M&E services. With its good overall stability, the Support Cone SMD 1 may also be used as a fixed-point mounting element in certain areas. In that case the permissible values for the lateral forces indicated in the characteristic curve are to be taken into consideration. This also applies to wall mounting situations. When used as fixed-point mounting element the pipe clamp is to be connected directly to the support tube. When used as a normal, rigid mounting element, a grub screw may be used between support tube and pipe clamp for height adjustment.
