Anchor Rod for push-through and put-before mounting in concrete tensile zones in M&E services and plant construction (for anchoring heavy loads). Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Small edge and centre distance. Approved for use under seismic action according to the performance category C1 and C2 (M10 - M16)
Certification
Technical specifications
Material base body | steel |
Surface | galvanisch verzinkt (Fe//Zn) |
Corossion class | C2 |
Fire resistance
Type | FRP 30 | FRP 60 | FRP 90 |

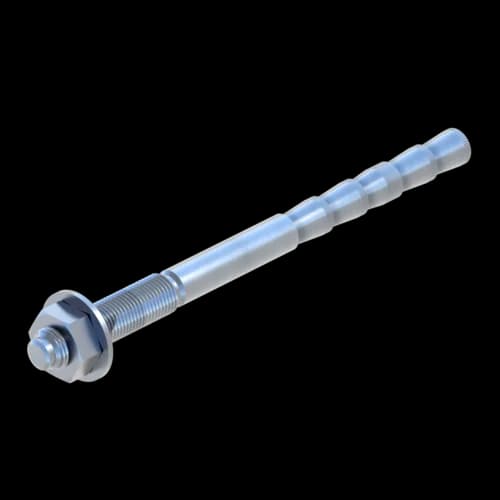

VMZ-A 50 M8-15/80 | 1,69 kN | 0,07 kN | - |
VMZ-A 50 M8-30/95 | 1,69 kN | 0,07 kN | - |
VMZ-A 60 M10-10/85 | 3,38 kN | 0,83 kN | - |
VMZ-A 60 M10-30/105 | 3,38 kN | 0,83 kN | - |
VMZ-A 60 M10-60/135 | 3,38 kN | 0,83 kN | - |
VMZ-A 80 M12-10/110 | 5,8 kN | 3,11 kN | 1,14 kN |
VMZ-A 80 M12-25/125 | 5,8 kN | 3,11 kN | 1,14 kN |
VMZ-A 80 M12-50/150 | 5,8 kN | 3,11 kN | 1,14 kN |
VMZ-A 125 12-25/170 | 5,8 kN | 3,11 kN | 1,14 kN |

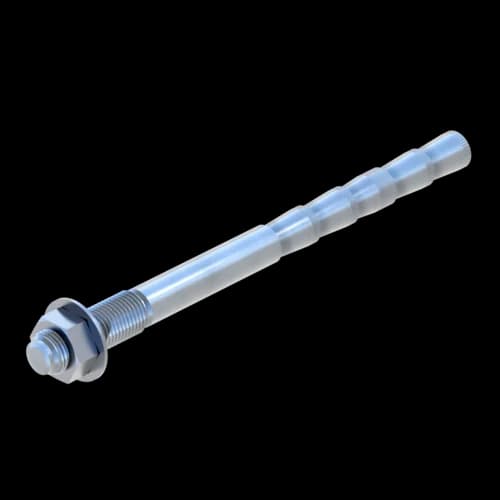

VMZ-A 125 16-30/180 | 7,62 kN | 5,81 kN | 4,01 kN |
VMZ-A 125 16-60/210 | 7,62 kN | 5,81 kN | 4,01 kN |
