Overview of Types
General Information
For wall, ceiling and floor installation of mounting elements in M&E services.
Certification
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Surface | galvanisch verzinkt (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
GPL N M 8 | 1,50 kN |
GPL N 2G | 1,50 kN |
GPL N M10 | 1,50 kN |

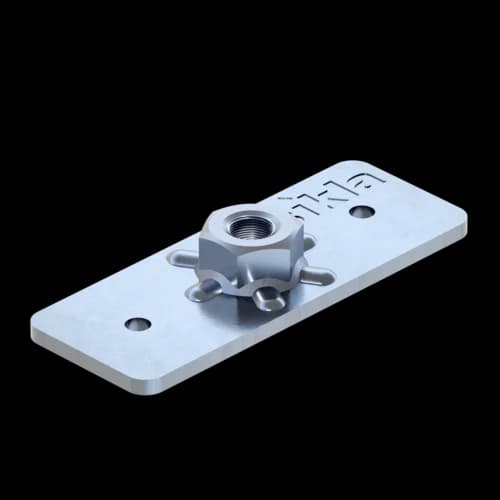

GPL N M10 RL | 1,50 kN |
GPL N 1/2'' | 1,50 kN |
GPL ST M10 | 4,00 kN |

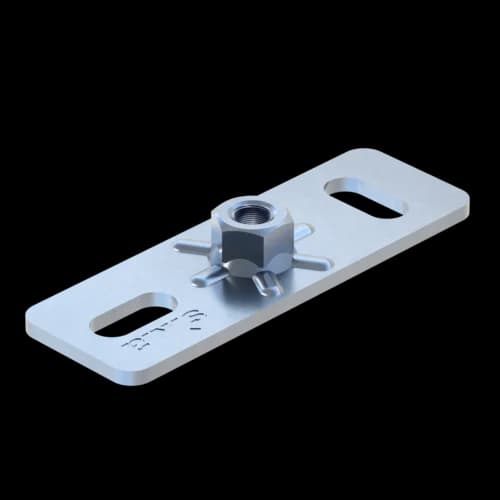

GPL ST M12 | 5,00 kN |

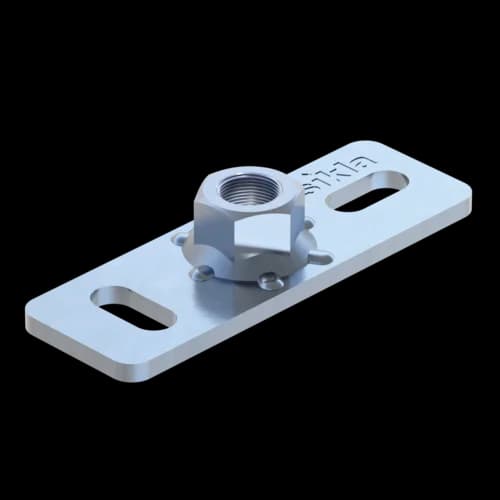

GPL ST M16 | 8,50 kN |

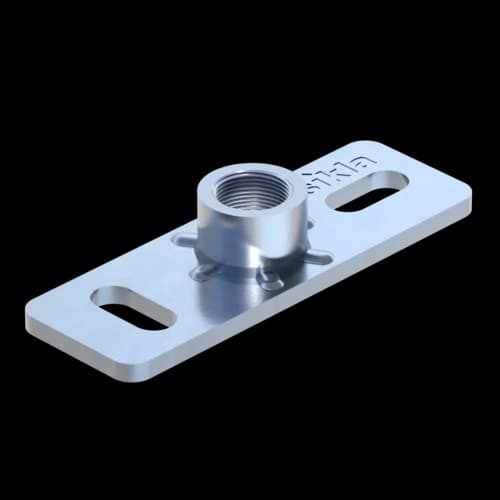

GPL STABIL R 1/2'' | 8,50 kN |
GPL STABIL R 3/4'' | 8,50 kN |
GPL STABIL R 1'' | 8,50 kN |
Type | Permissible bending moment Mb,perm. |
GPL N M 8 | 8,8 Nm |
GPL N 2G | - |
GPL N M10 | 17,2 Nm |
GPL N M10 RL | 17,2 Nm |
GPL N 1/2'' | 25 Nm |
GPL ST M10 | 17,2 Nm |
GPL ST M12 | 29,6 Nm |
GPL ST M16 | 70,3 Nm |
GPL STABIL R 1/2'' | 95 Nm |
GPL STABIL R 3/4'' | 180 Nm |
GPL STABIL R 1'' | 350 Nm |
