Overview of Types
General Information

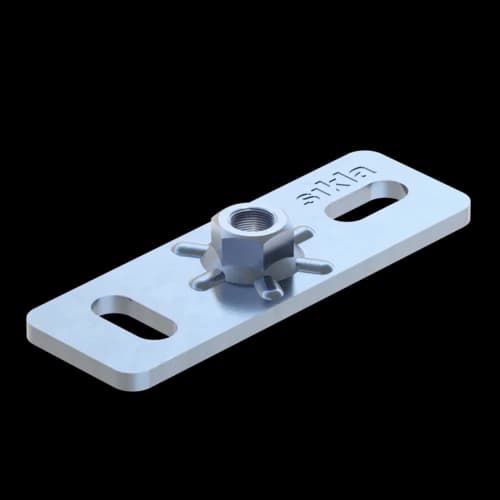

Element for fixation to wall, ceiling and floor for installations in M&E services.
Certification
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
GPL-ST M10 HCP | 4,00 kN |
GPL-ST M12 HCP | 4,00 kN |
GPL-ST M16 HCP | 8,50 kN |
GPL-ST 1/2'' HCP | 8,50 kN |
Type | MX,perm. |
GPL-ST M10 HCP | 0,02 kNm |
GPL-ST M12 HCP | 0,03 kNm |
GPL-ST M16 HCP | 0,07 kNm |
GPL-ST 1/2'' HCP | 0,1 kNm |
