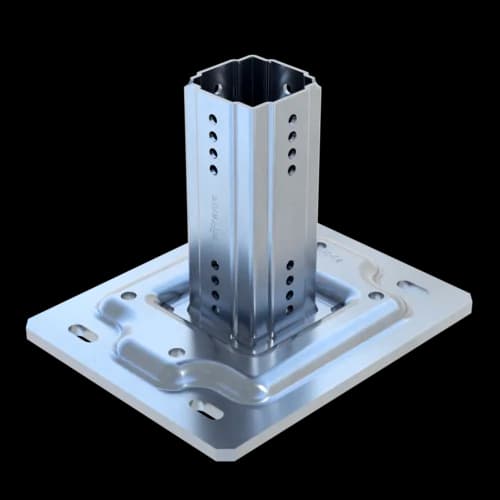

End Support WBD-P-4KT 121/160-F100 HCP
Group: A821
Part number 117167
Technical Data
Load range
-VX,perm. | 66,60 kN |
VX,perm. | 66,60 kN |
-VY,perm. | 68,00 kN |
VY,perm. | 68,00 kN |
-VZ,perm. | 64,40 kN |
VZ,perm. | 64,40 kN |
-MX,perm. | 6,1 kNm |
MX,perm. | 6,1 kNm |
-MY,perm. | 8,1 kNm |
MY,perm. | 8,10 kNm |
-MZ,perm. | 70 kNm |
MZ,perm. | 70 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
