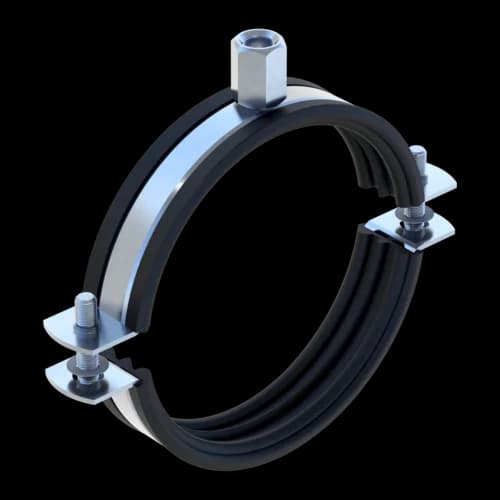

Two-piece pipe clamp with double thread connection (M8/M10) and sound absorption lining for the installation of pipelines. Applicable for sound-absorbed installations according to DIN 4109 specifications.
Certification
Material base body | steel |
Material insulation body | SBR/EPDM |
Material connecting element | steel |
Corossion class | C2 |
Info | Type | Size min. | Size max. | Thread connection | Weight | Quantity | Part number | |
| ERS ME 15 - 19 | 15,00 mm | 19,00 mm | - | 0,043 kg/pcs. | 180 pcs. | - | ||
| ERS ME 25 - 28 | 25,00 mm | 28,00 mm | - | 0,052 kg/pcs. | 130 pcs. | - | ||
| ERS ME 11 - 15 | 11,00 mm | 15,00 mm | - | 0,041 kg/pcs. | 200 pcs. | - | ||
| ERS ME 20 - 24 | 20,00 mm | 24,00 mm | - | 0,047 kg/pcs. | 170 pcs. | - | ||
| ERS ME 107 - 115 | 107,00 mm | 115,00 mm | - | 0,159 kg/pcs. | 50 pcs. | - | ||
| ERS ME 54 - 58 | 54,00 mm | 58,00 mm | - | 0,09 kg/pcs. | 50 pcs. | - | ||
| ERS ME 39 - 46 | 39,00 mm | 46,00 mm | - | 0,077 kg/pcs. | 90 pcs. | - | ||
| ERS ME 48 - 53 | 48,00 mm | 53,00 mm | - | 0,084 kg/pcs. | 70 pcs. | - | ||
| ERS ME 32 - 35 | 32,00 mm | 35,00 mm | - | 0,057 kg/pcs. | 120 pcs. | - | ||
| ERS ME 87 - 92 | 87,00 mm | 92,00 mm | - | 0,138 kg/pcs. | 50 pcs. | - | ||
| ERS ME 75 - 80 | 75,00 mm | 80,00 mm | - | 0,124 kg/pcs. | 60 pcs. | - | ||
| ERS ME 59 - 66 | 59,00 mm | 66,00 mm | - | 0,094 kg/pcs. | 50 pcs. | - | ||
