Product catalogue

24 out of 574 results

Filters

24 out of 574 results

electro galvanized

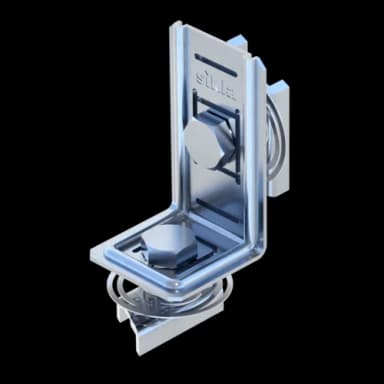

Angle Connector EV CC41-1

1 Variant

Connecting element for frame structures, optimised for linking channels of the 41 series at an angle of 90°. Preferably used in combination with 41/41 square channels. The adjustment for the channel opening could still be chosen. Fast-Technique for 90° joints of Channel System 41. Locks automatically when being put in place and supports its own weight. Secure, form-locking, non-positive connection. Serrated Channel Nut with Hexagon Bolt M10. Ideal shaping for high stiffness. The proven Sikla rhomb guarantees a secure torque and preload force.

HCP

Cantilever Bracket AK F100 HCP

5 Variants

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible. With the types F 100-80 and F 100-80-E a combination of Beam Section F 100 with F 80/80 is possible.

HCP

Mounting Plate GPL F 80 HCP

5 Variants

Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F80 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.

electro galvanized

Pipe Clamp STABIL D-2G/3G

42 Variants

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

HCP

Pipe Clamp STABIL D-2G/3G HCP

45 Variants

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

electro galvanized

Pipe Clamp STABIL D-2G/3G ME

43 Variants

For the installation of pipes required for all M&E services in industrial, residential and public buildings. Particularly suitable for soundproof pipe installation according to DIN 4109.

HCP

Pipe Clamp STABIL D-2G/3G ME HCP

43 Variants

For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings (as per DIN 4109). Suitable for ceiling, floor and wall mounting. The form-fitting rubber profile is additionally glued in place, making it completely secure and allowing the pipe to be rotated and slid without any problems during installation, without the rubber becoming jammed.

HCP

Beam Section TP F100 HCP

2 Variants

Galvanised box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes are designed to receive Self Forming Screw FLS in conjunction with relevant components.

galvanized

Channel MS 41

22 Variants

Element for easily and efficiently pre-assembling crossbars, wall brackets and supporting structures on construction sites or in workshops.

HCP

Pipe Shoe LA-HV 150 HCP

29 Variants

Height-adjustable, single-clamp pipe shoe with a delivery height of 150 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

electro galvanized

Acoustic Absorption Element AKE 41 AG/IG

1 Variant

Universally applicable sound absorption element for higher loads. Suitable for sound-decoupled fastenings for sound insulation requirements, including those specified in DIN 4109. Especially suitable for sound isolation of constructions made of Channels 41 or electrical equipment, e.g. pumps or ventilators.

electro galvanized
