High Temperature Pipe Shoe LC-HT-HV 200 84-89 (DN 80_3'')

Group: A767

Part number 801100

This is a replacement for Old Productname (Part number 123456).

Double-clamp, height-adjustable Pipe Shoe with a delivery height of 200 mm, height-adjustment in steps of 2.5mm - suitable for sliding pipe supports

Designed for use in temperatures up to 500°C, with material-dependent correction factors for load determination in accordance with DIN EN 13480-3.

Suitable for steel beams, with a minimum flange width of 80 mm

Technical Data
Installation

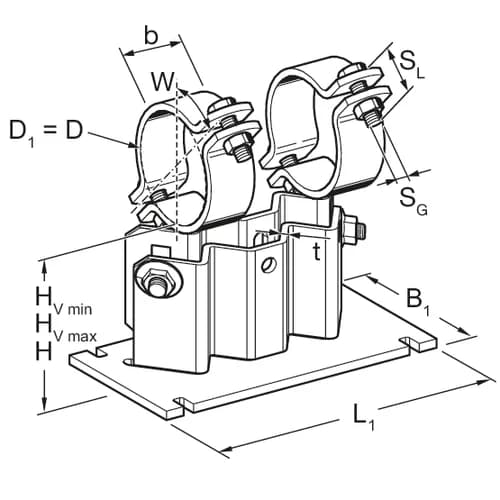

Technical Data

D₁	89 mm
D	89 mm
B₁	100 mm
L₁	250 mm
H_{V min}	171 mm
H_{V max}	223,5 mm
H	200 mm
S_L	45 mm

Upper and lower part are bolted together allowing height adjustment. In order to reduce the spacings of the lugs the pipe clamps from DN 100 are rotated by 45° (see illustration).

Technical specifications

Salt spray test

Resistance > 500 hours

Primary element material	steel
Connecting element material	Torque/Nut Height adjustment: A4-80, Torque/Nut Pipe Clamp: A4-70
Surface finish	HCP
Corrosion protection class	C4

Delivery time on request - Made-to-order goods.

Installation

Type	Height H as delivered [mm]	Height H Range [mm]
HV 200	200	171 - 223,5

Tightening torque screw connections

Clamping bolts	Tightening torque [Nm]	Height adjustment	Tightening torque [Nm]
DN 15 - 40	40	Bolts in the bar	80
DN 50 - 200	50	Bolts in the bar	80
