Group: A630
Part number 802766

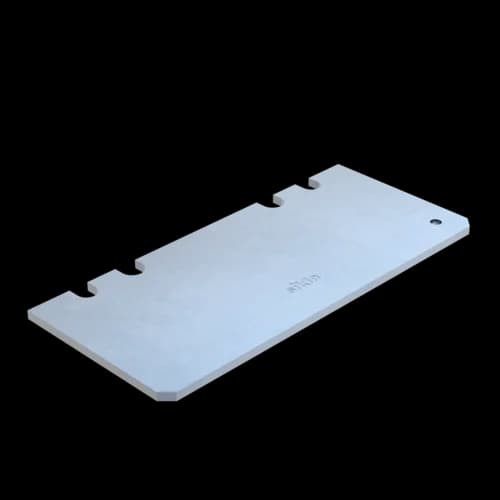

Support plate for gratings used with Sikla components on steel beams
Closes the gap between base plate and cut-out grating to provide fall protection
Eliminates the need for welded upstands on the grating edge

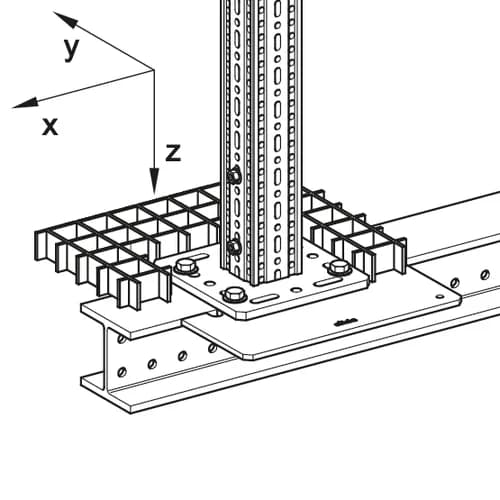

-VZ,perm. | 5,50 kN |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |

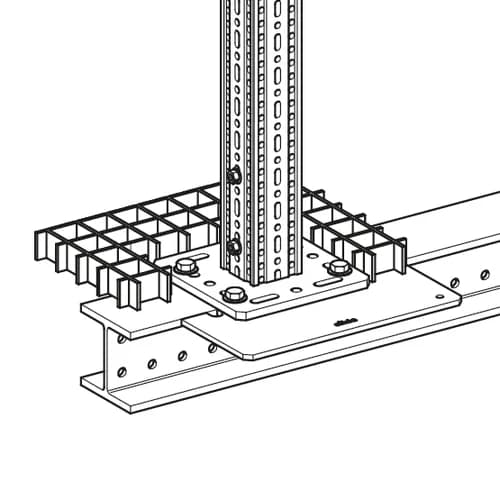

The grating support is clamped to the steel beam together with the base plate of the Sikla component using the MS 5P mounting set. Subsequent assembly is possible. The grating support can be used on one or both sides and can be combined with all base plate sizes. The recesses for the screws of the assembly sets are matched to all beams widths and to the two sizes M12 and M16.

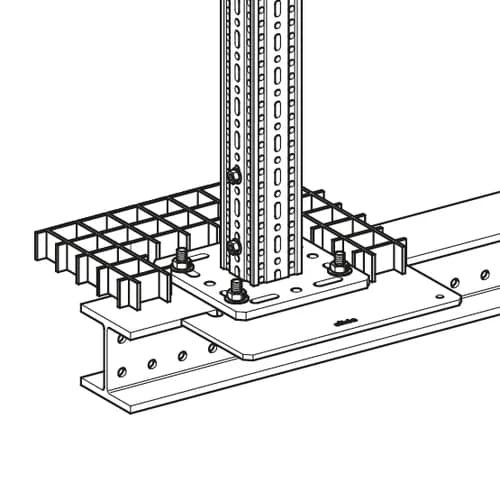

Assembly note: Turn hexagon head screw (screw head on top of the panel, thread downwards to avoid a tripping edge, see figure).
Certification
