Assembly Group BG42 MS 41-1/2'' HCP

Group: 1102

This is a replacement for Old Productname (Part number 123456).

Select a Type

Overview of Types
General Information

Overview of Types

General Information

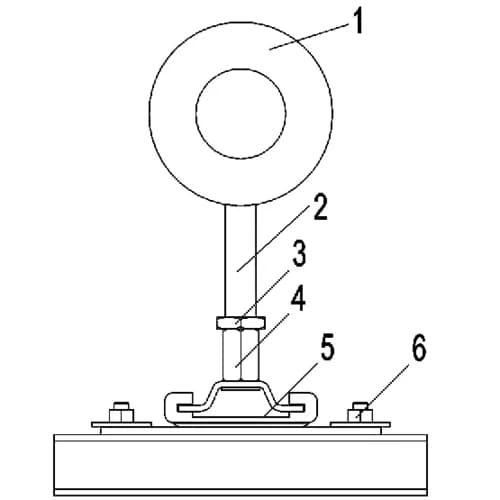

An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Sikla MS 41 channel system. The height is adjusted via the Threaded Tube 1/2'.

Technical specifications

Fire Performance

B2 according to DIN 4102

Material base body	steel
Material insulation body	PUR
Material connecting element	steel
Surface	electro galvanized (Fe//Zn), HCP
Corossion class	C4

Info	Type	DN	Weight	Quantity	Part number
	BG42 MS 41-1/2'' DN 50 HCP	-	2,18 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 25 HCP	-	2,08 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 65 HCP	-	2,3 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 40 HCP	-	2,09 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 80 HCP	-	2,35 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 20 HCP	-	2,07 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 32 HCP	-	2,09 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 100 HCP	-	2,93 kg/pcs.	1 pcs.	-

	BG42 MS 41-1/2'' DN 15 HCP	-	2,07 kg/pcs.	1 pcs.	-
