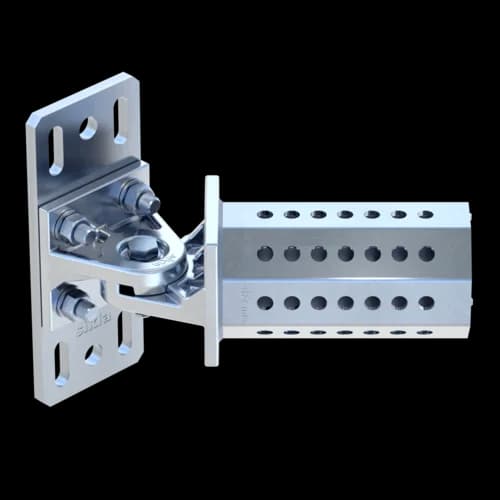

Pivot Joint GE-Q F 80-F 80 HCP
Group: A437
Part number 113834
This is a replacement for Old Productname (Part number 123456).
Login to see prices and availabilities

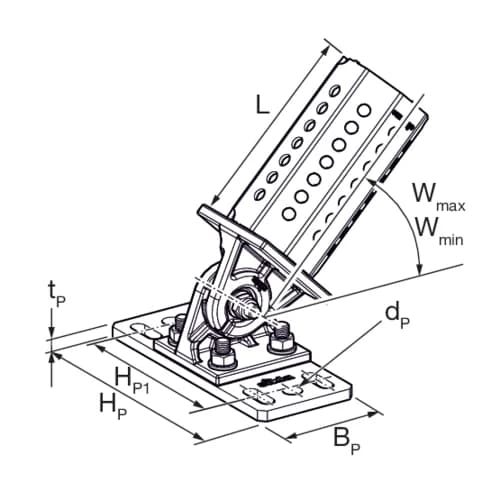

Login or registerTechnical Data
BP | 80 mm |
HP | 190 mm |
BP1 | 50 mm |
HP1 | 140 mm |
dP | 14 mm |
Wmin | 25° |
Wmax | 155° |
Load range
-VX,perm. | 13,70 kN |
VX,perm. | 13,70 kN |
Technical specifications
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
