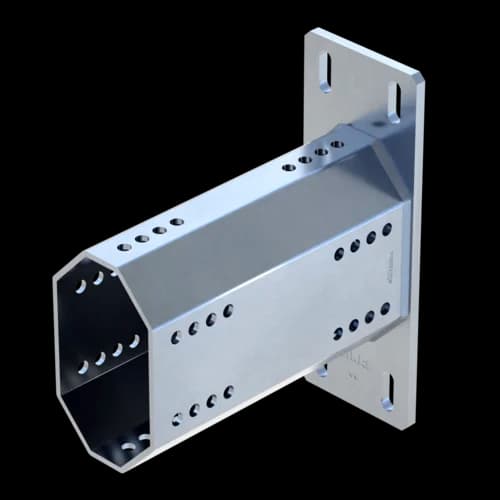

End Support STA F100-F100/160 HCP
Group: A822
Part number 114878

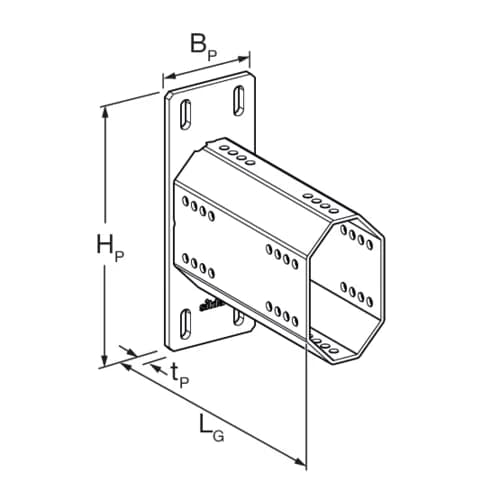

Technical Data
BP | 100 mm |
HP | 270 mm |
HP1 | 220 mm |
LG | 239 mm |
Load range
-VX,perm. | 44,50 kN |
VX,perm. | 44,50 kN |
-VY,perm. | 54,80 kN |
VY,perm. | 54,80 kN |
-VZ,perm. | 42,10 kN |
VZ,perm. | 42,10 kN |
-MY,perm. | 3,5 kNm |
MY,perm. | 3,50 kNm |
-MZ,perm. | 2,1 kNm |
MZ,perm. | 2,1 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
