AK F 100
HCP
AK F 100-80
HCP
HCP
HCP
Group: A820
Galvanised hollow-box section with welded end plate serving as a cantilever arm
Can be used as a crossbar with End Support STA and Self Forming Screws FLS
Types F 100-80 and F 100-80-E allow combination of Beam Section F 100 with F 80/80

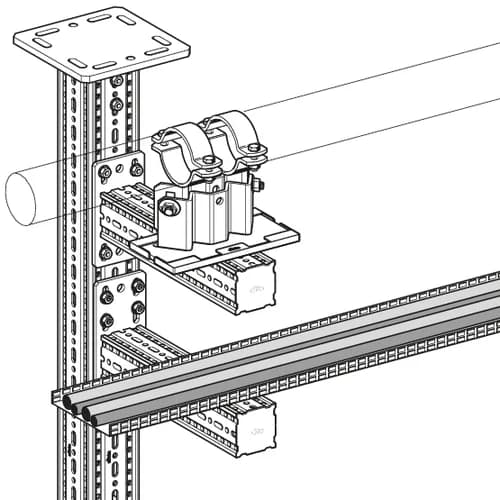

With 4 x Self Forming Screw FLS when fixed to another siFramo hollow-box-section. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.

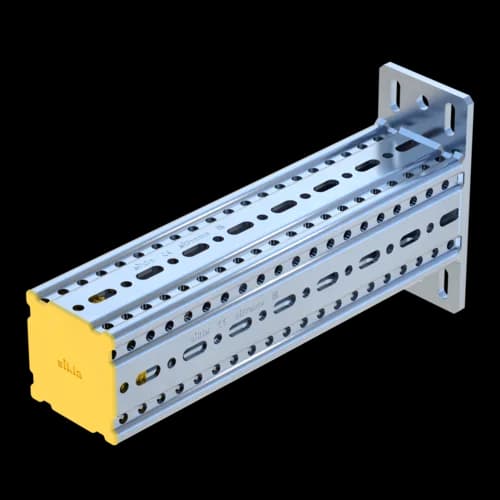

Configuration AK F 100: Plate welded to Beam Section F 100

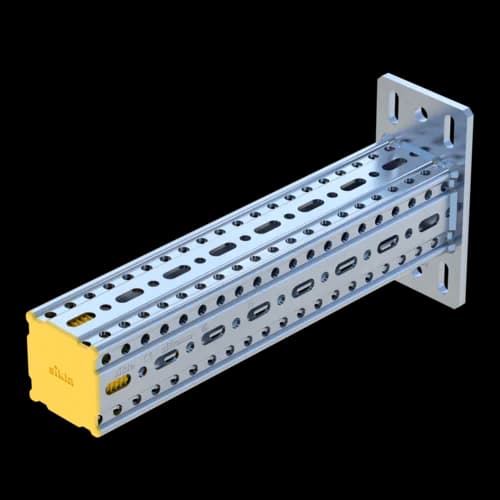

Configuration AK F 100-80: Plate welded to Beam Section F 80
Info | Type | LG | Weight | Quantity | Part number | |
| AK F100-F 80- 400 HCP | 409 mm | 3.720 kg/pcs. | 1 pcs. | 117143 | ||
| AK F100-F 80- 800 HCP | 809 mm | 6.300 kg/pcs. | 1 pcs. | 117144 | ||
| AK F100- 400 HCP | 409 mm | 5.664 kg/pcs. | 1 pcs. | 113068 | ||
| AK F100- 800 HCP | 809 mm | 10.064 kg/pcs. | 1 pcs. | 113069 | ||
| AK F100-1200 HCP | 1209 mm | 14.680 kg/pcs. | 1 pcs. | 113419 | ||
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA and 4 x Self Forming Screw FLS. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible. With the types F 100-80 and F 100-80-E a combination of Beam Section F 100 with F 80/80 is possible.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type | -VX,Rd | VX,Rd | -VY,Rd | VY,Rd | -VZ,Rd | VZ,Rd |
AK F100-F 80- 400 HCP | - | - | - | - | - | - |
AK F100-F 80- 800 HCP | - | - | - | - | - | - |
AK F100- 400 HCP | 46,4 kN | 46,4 kN | 27,2 kN | 27,2 kN | 23,6 kN | 23,6 kN |
AK F100- 800 HCP | 46,4 kN | 46,4 kN | 27,2 kN | 27,2 kN | 23,6 kN | 23,6 kN |
AK F100-1200 HCP | 46,4 kN | 46,4 kN | 27,2 kN | 27,2 kN | 23,6 kN | 23,6 kN |
Type | -MX,Rd | MX,Rd | -MY,Rd | MY,Rd | -MZ,Rd | MZ,Rd |
AK F100-F 80- 400 HCP | - | - |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Also available with DualShield for high corrosion protection within C5H environments.
Software
This product is available in the following software.
-
- |
- |
- |
AK F100-F 80- 800 HCP | - | - | - | - | - | - |
AK F100- 400 HCP | 3,6 kNm | 3,6 kNm | 2,9 kNm | 2,9 kNm | 2,2 kNm | 2,2 kNm |
AK F100- 800 HCP | 3,6 kNm | 3,6 kNm | 2,9 kNm | 2,9 kNm | 2,2 kNm | 2,2 kNm |
AK F100-1200 HCP | 3,6 kNm | 3,6 kNm | 2,9 kNm | 2,9 kNm | 2,2 kNm | 2,2 kNm |
