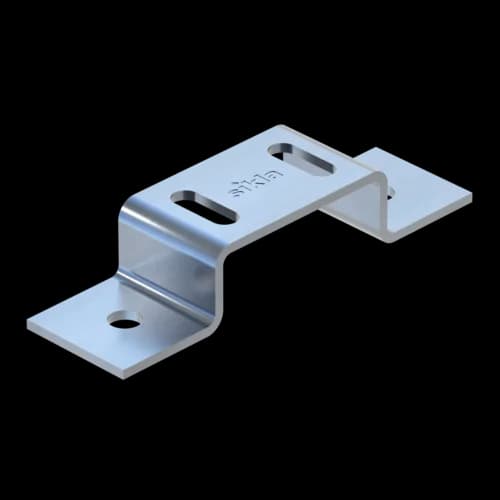

Beam Section Holder TPH F 80/30 HCP
Group: A425
Part number 116672
Technical Data
B | 81 mm |
B1 | 181 mm |
B2 | 131 mm |
B3 | 50 mm |
L | 50 mm |
H | 30 mm |
t | 4 mm |
lz | 20 mm |
Load range
-VX,perm. | 14,40 kN |
VX,perm. | 14,40 kN |
-VY,perm. | 28,10 kN |
VY,perm. | 28,10 kN |
VZ,perm. | 18,30 kN |
-MY,perm. | 1,2 kNm |
MY,perm. | 1,20 kNm |
-MZ,perm. | 1,2 kNm |
MZ,perm. | 1,2 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
