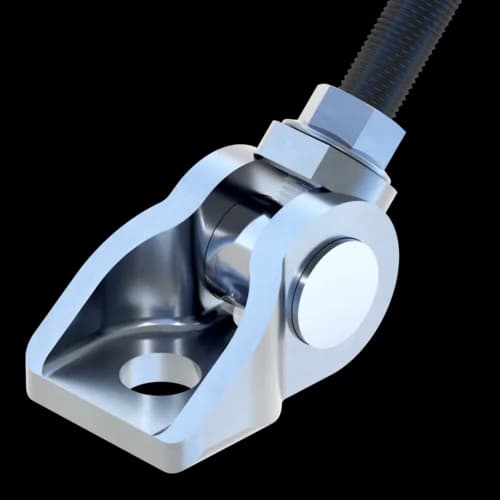

Universal Joint UG M12

Group: 1342

Part number 158075

This is a replacement for Old Productname (Part number 123456).

Technical Data

Technical Data

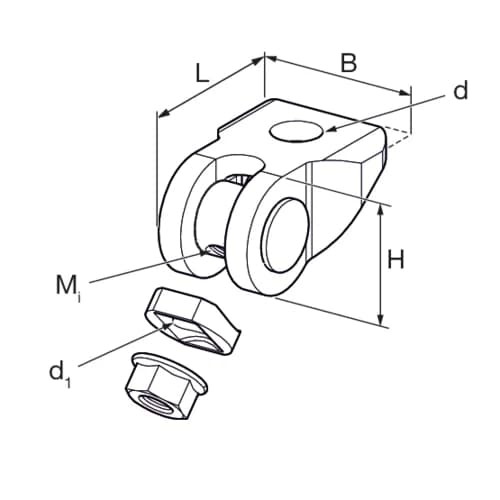

UG M12_M.eps

H	40 mm
B	50 mm
L	71 mm
L₁	33 mm
D	17 mm
D₁	12,5 mm

Technical specifications

Primary element material	M8-M10: steelM12-M16: cast iron
Surface finish	electro galvanized (Fe//Zn)
Corrosion protection class	C2

Certification
