U Clamp RUC 43

Group: 1203

Part number 159058

This is a replacement for Old Productname (Part number 123456).

Technical Data

Technical Data

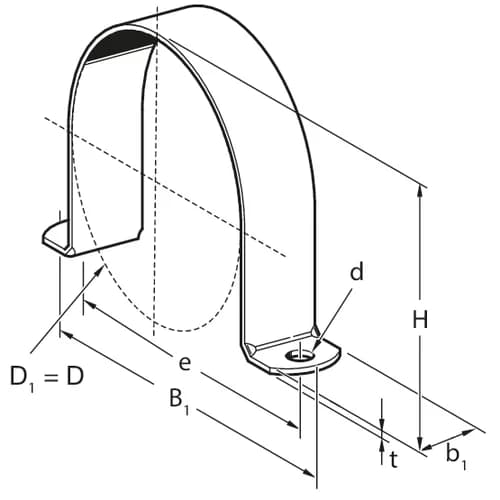

RUC_10046_M.eps

H	43 mm
D	43 mm
B₁	94 mm
e	74 mm
t	2,5 mm

Technical specifications

Primary element material	steel
Surface finish	pre-galavanised
Corrosion protection class	C2

Certification
