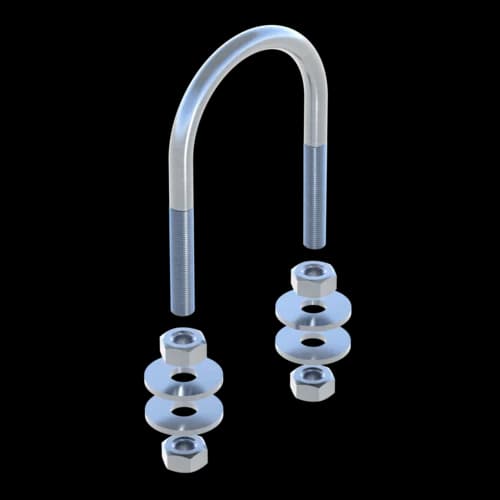

U Bolt RUB

Group: 1211

This is a replacement for Old Productname (Part number 123456).

Select a Type

Overview of Types
General Information

Overview of Types

General Information

For pipeline systems in industrial and residential buildings and sprinkler installations meeting the VdS standards. For horizontal and vertical pipelines, the U-Bolts are applied as Fixed Points and as Guiding Supports. U-Bolt also available in accordance with DIN 3570.

Certification

Technical specifications

Material base body	steel
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Info	Type	DN	Thread connection	Weight	Quantity	Part number
	RUB 133MM	-	-	0,431 kg/pcs.	25 pcs.	-

	RUB 159MM	-	-	0,479 kg/pcs.	25 pcs.	-

	RUB 108MM	-	-	0,394 kg/pcs.	50 pcs.	-

	RUB 21,3MM (1/2'')	-	-	0,08 kg/pcs.	50 pcs.	-

	RUB 168MM (6'')	-	-	0,496 kg/pcs.	10 pcs.	-

	RUB 139MM (5'')	-	-	0,446 kg/pcs.	25 pcs.	-

	RUB 114MM (4'')	-	-	0,396 kg/pcs.	25 pcs.	-

	RUB 60,3MM (2'')	-	-	0,213 kg/pcs.	50 pcs.	-

	RUB 42,4MM (1 1/4'')	-	-	0,103 kg/pcs.	50 pcs.	-

	RUB 26,9MM (3/4'')	-	-	0,09 kg/pcs.	50 pcs.	-

	RUB 219MM (8'')	-	-	0,616 kg/pcs.	10 pcs.	-

	RUB 76,1MM (2 1/2'')	-	-	0,231 kg/pcs.	50 pcs.	-

	RUB 88,9MM (3'')	-	-	0,248 kg/pcs.	50 pcs.	-

	RUB 48,3MM (1 1/2'')	-	-	0,109 kg/pcs.	50 pcs.	-

	RUB 33,7MM (1'')	-	-	0,097 kg/pcs.	50 pcs.	-
