Overview of Types
General Information

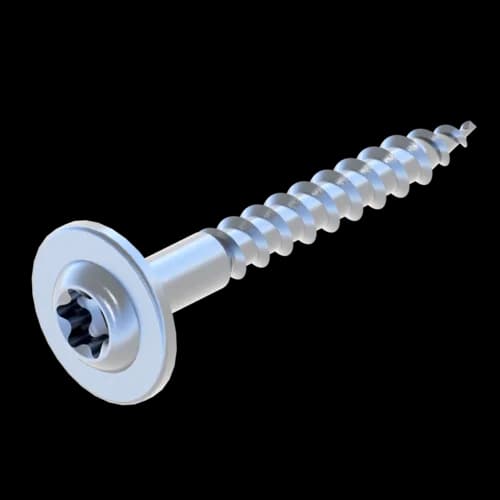

Flange screw with perfectly aligned properties for the constructional timber work, available in diameters 8 and 10 mm. Simple handling is secured due to ideal load transmission. The head dia. of type M8 is aligned to the slots of Channel 41. Thus for direct assembly through the elongated hole of the channel, a good load bearing capacity is secured. Type M10 can also be used at the edge of the channel for direct assembly into the elongated holes. The cutting notch allows direct screwing in without pre-drilling and allows a pinpoint locating. In addition, the tip avoids reliably the splitting of the battens behind. The high bearing of loads given by the flat head reduces the necessary fixing points. Especially for the fixing of roof hooks, an economical handling is assured.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
