300-200

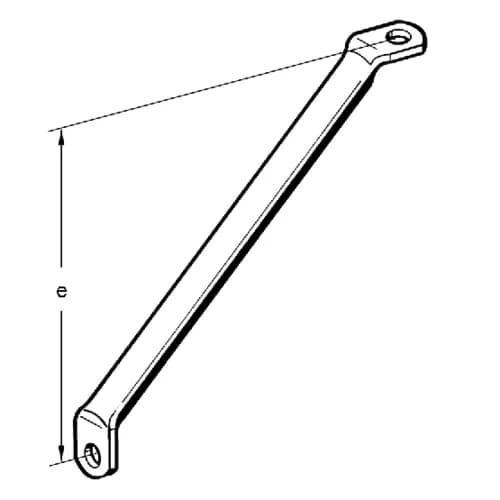

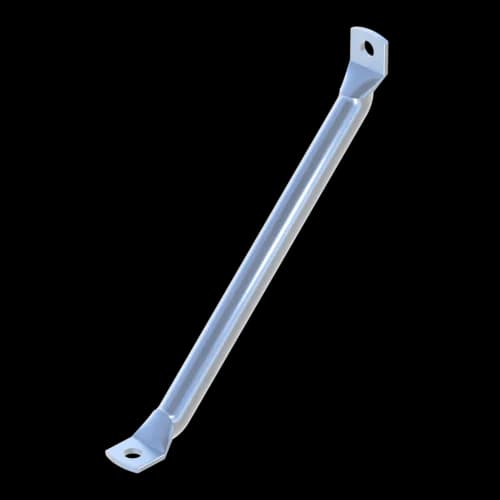

Tie Rod STR 300/200 HCP
Group: 1326
Part number 125967
Tie Rods absorb transverse forces from Support Brackets, especially in sliding elements.

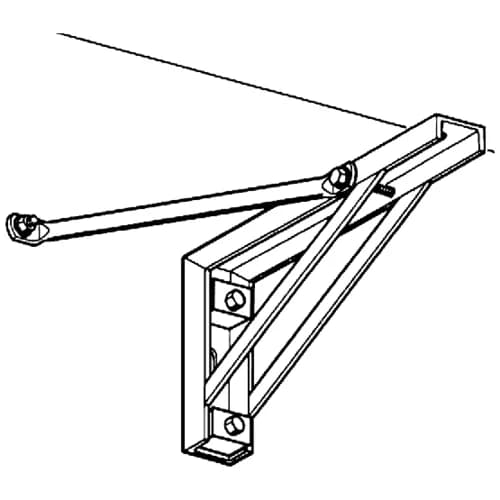

Installation of Tie Rods prevents the Support Brackets from being torn out by shear forces.
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
300-200
Group: 1326
Part number 125967
Tie Rods absorb transverse forces from Support Brackets, especially in sliding elements.
Installation of Tie Rods prevents the Support Brackets from being torn out by shear forces.
-VZ,perm. | 7,00 kN |
VZ,perm. | 7,00 kN |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |

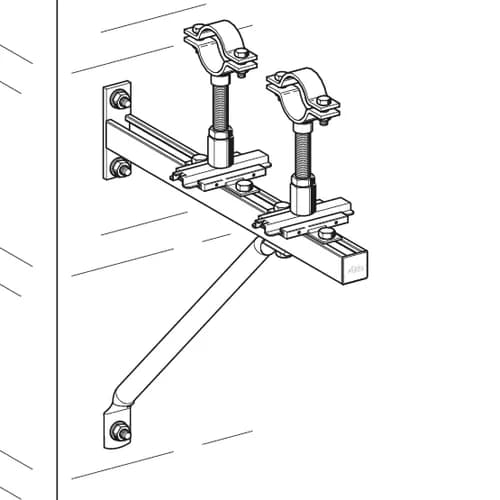

Fix the Tie Rod to the bore especially made for such purpose at the overhanging leg of the Support Bracket using the recommended hexagon bolt (see table).
| Type | Recommended bolt for attachement to Support Bracket | Installation dimension A | Pipe |
|---|---|---|---|
| 300/200 | M10 x 80 | 210 | 1/2" |
| 550/350 | M10 x 80 | 365 | 1/2" |
| 725/400 | M10 x 100 | 400 | 3/4" |
| 880/550 | M10 x 100 | 550 | 3/4" |
Certification
