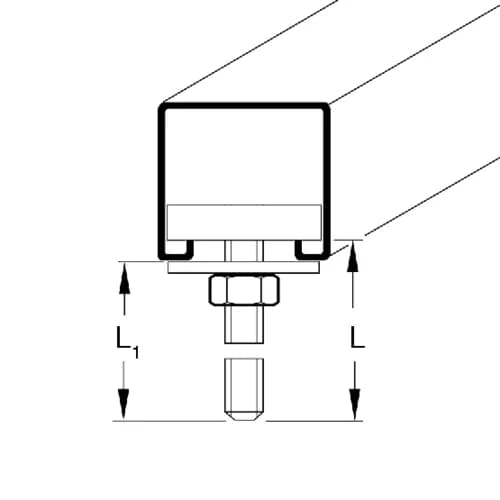

To be used with Channels MS 41 HCP.
Certification
Material base body | steel |
Material connecting element | Steel Grade 4.6 |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
| Type | Tightening torque Mdmax [Nm] |
|---|---|
| HZ 41 M8 | 10 |
| HZ 41 M10 | 18 |
| HZ 41 M12 | 32 |
| HZ 41 M16 | 79 |
Info | Type | L | Weight | Quantity | Part number | |
| TBO HZ41 M 8 X 75 | 80,00 mm | 0,097 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X 25 | 30,00 mm | 0,081 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X 20 | 25,00 mm | 0,078 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M16 X 55 | 60,00 mm | 0,194 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 25 | 30,00 mm | 0,087 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 20 | 25,00 mm | 0,125 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 95 | 100,00 mm | 0,124 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 55 | 60,00 mm | 0,105 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 35 | 40,00 mm | 0,137 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M16 X 75 | 80,00 mm | 0,225 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 75 | 80,00 mm | 0,164 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 75 | 80,00 mm | 0,117 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 35 | 40,00 mm | 0,097 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X 55 | 60,00 mm | 0,089 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X95 | 100,00 mm | 0,11 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X 15 | 20,00 mm | 0,078 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M16 X 95 | 100,00 mm | 0,246 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 95 | 100,00 mm | 0,179 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 55 | 60,00 mm | 0,15 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 15 | 20,00 mm | 0,083 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M16 X 25 | 30,00 mm | 0,153 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M10 X 20 | 25,00 mm | 0,09 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M12 X 25 | 30,00 mm | 0,128 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M 8 X 35 | 40,00 mm | 0,084 kg/pcs. | 50 pcs. | - | ||
| TBO HZ41 M16 X 35 | 40,00 mm | 0,17 kg/pcs. | 50 pcs. | - | ||
