Support Bracket WK 880/550 HCP
Group: 1826
Part number 151050
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
880-550
HCP
HCP
HCP
Group: 1826
Part number 151050
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel

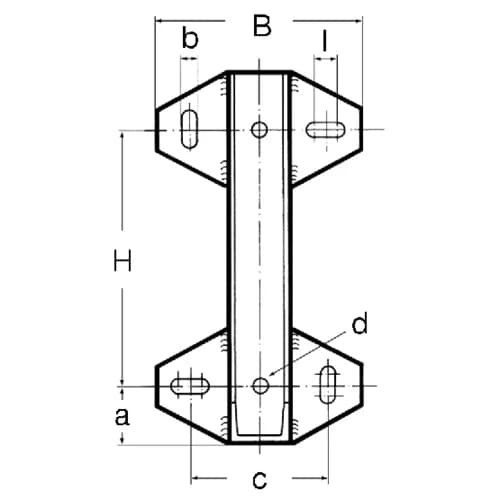

b | 17 mm |
BP | 270 mm |
BP2 | 200 mm |
bP | 17 mm |
d | 17 mm |
d1 | 11 mm |
H | 550 mm |
H1 | 80 mm |
H2 | 470 mm |
L | 880 mm |
L1 | 165 mm |
L2 | 445 mm |
L3 | 725 mm |
tP | 10 mm |
For load values, see additional documents.
Permissible stress σ{perm.} | 160,00 N/mm² |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
