Type 0
electro galvanized
Group: 1610
Part number 105077

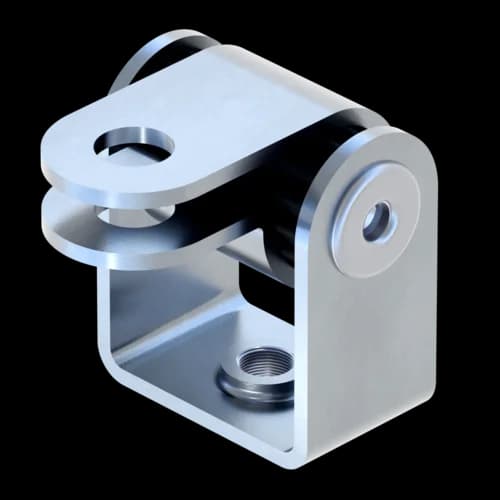

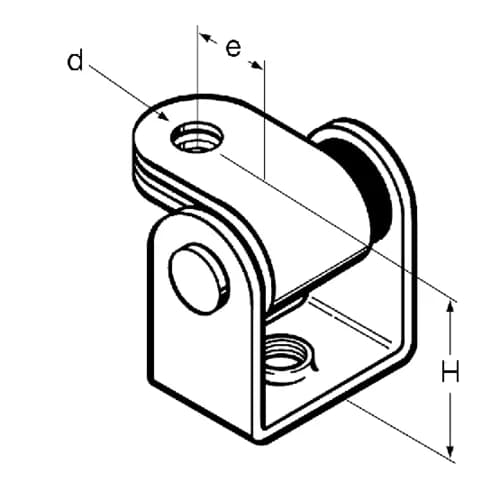

Versatile sound insulation element for ventilation systems with sound insulation requirements according to DIN 4109
Mainly for direct ceiling attachment, can be combined with various mounting components
-VZ,perm. | 1,00 kN |
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | Class B2 according to DIN 4102 |
Insertion isolation | 15 dB(A) |
Hardness | 45+/-5° Shore |
Primary element material | steel |
Isolating element material | SBR/EPDM |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
