Slide Set GS 2G A4

Group: 1736

This is a replacement for Old Productname (Part number 123456).

Select a Type

Overview of Types
General Information

Overview of Types

General Information

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R1' using adapters (see Adapters AD f/f ss) Sound absorption by means of slide rails of glass fibre reinforced PA.

Technical specifications

Permissible long-term temperature

130 °C

Sliding friction μ	0,14
Static coefficient of friction μ₀	0,18

Primary element material	Stainless Steel A4
Sliding element material	PA
Corrosion protection class	CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2)

Load range

Type	-V_Z,perm.	V_Z,perm.
GS 2G A4	0,60 kN	1,20 kN
GS 2G2 A4	0,60 kN	1,20 kN

Software

This product is available in the following software.

Info	Type	Max. lever arm	Max. slide path	Thread connection	Weight	Quantity	Part number

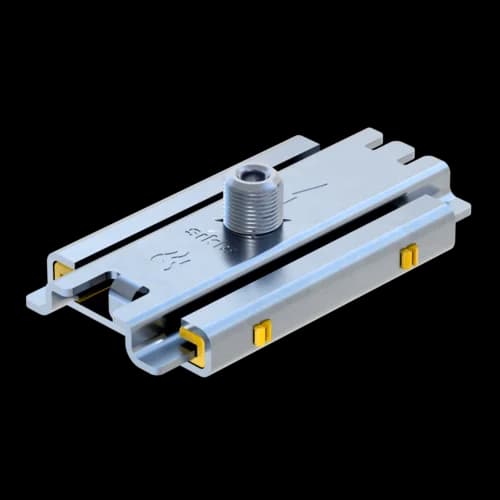

	GS 2G A4	250,00 mm	85,00 mm	M10/M16	0,38 kg/pcs.	25 pcs.	170161

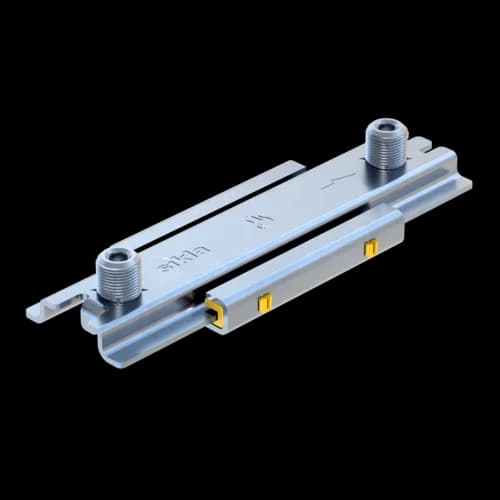

	GS 2G2 A4	150,00 mm	140,00 mm	M10/M16	0,498 kg/pcs.	25 pcs.	170189
