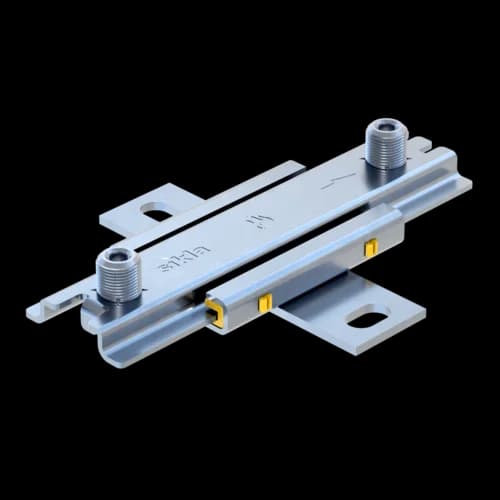

Slide Set GS 2G2 - PL HCP

Group: 1836

Part number 114594

Technical Data

Technical Data

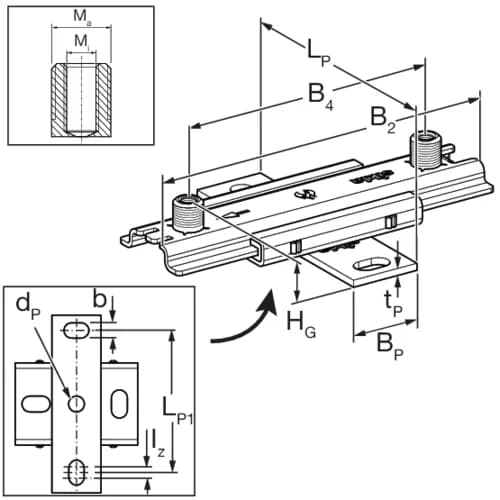

GS_2G2-PL_M.eps

L	67 mm
L_G	71 mm
L_P	145 mm
L_P1	116 mm
B₂	200 mm
B₃	68 mm
B₄	150 mm
M_i1	M10
M_a	M16

Load range

-V_Z,perm.	0,60 kN
V_Z,perm.	1,20 kN

FRP 30	0,6 kN
FRP 60	0,43 kN
FRP 90	0,28 kN
FRP 120	0,2 kN

Technical specifications

Permissible long-term temperature

130 °C

Sliding Friction μ	0,14
Static Friction μ₀	0,18

Material base body	steel
Material sliding element	PA GF
Surface	HCP
Corossion class	C4

Certification
