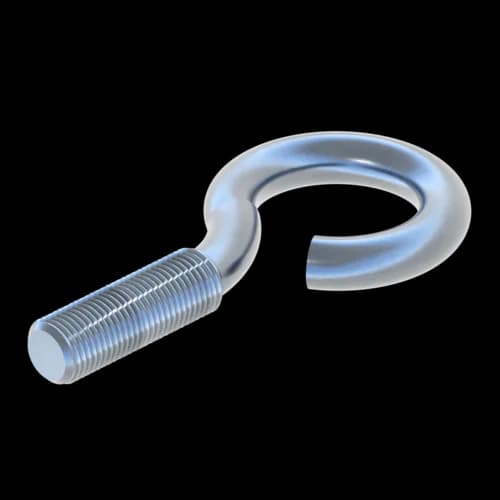

Ring Bolt SCR RIN C M12x 40 S
Group: 1305
Part number 152981
Connection element for suspended pipe supports.
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1305
Part number 152981
Connection element for suspended pipe supports.
A | 10 mm |
D | 30 mm |
L | 102 mm |
L1 | 40 mm |
L2 | 27 mm |
Ma | M12 |
-VZ,perm. | 15,00 kN |
Load figure applies to closed and welded conditions.
Primary element material | steel |
Surface finish | uncoated |
Corrosion protection class | C2 |
Certification
