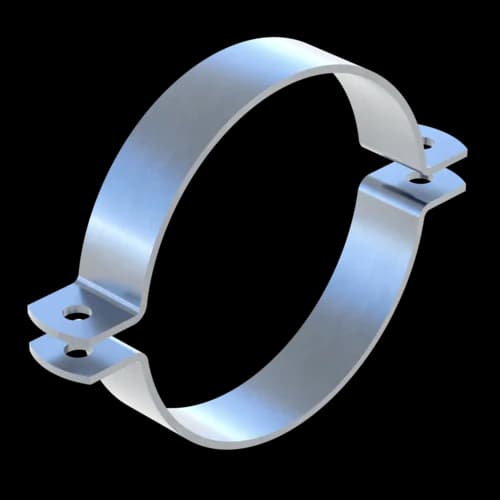

Pipe Clamp STABIL D 210-219 A4
Group: 1739
Part number 172559

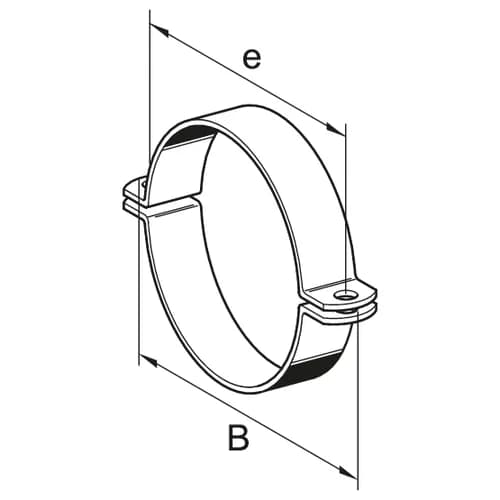

Technical Data
H | 227 mm |
D | 219 mm |
B1 | 304 mm |
e | 269 mm |
t | 4 mm |
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
