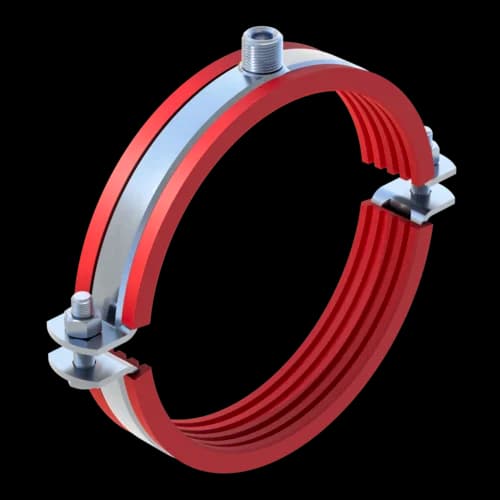

Pipe Clamp STABIL D-3G SIL 156-162
Group: 1242
Part number 108292

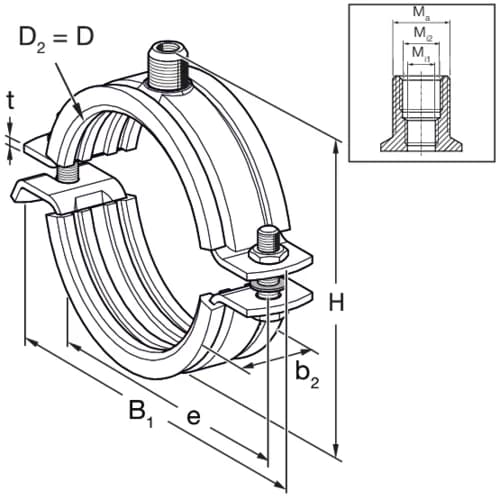

Technical Data
H | 208 mm |
D | 162 mm |
B1 | 243 mm |
e | 214 mm |
t | 4 mm |
SL | 40 mm |
Technical specifications
Material base body | steel |
Material insulation body | silicone |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
