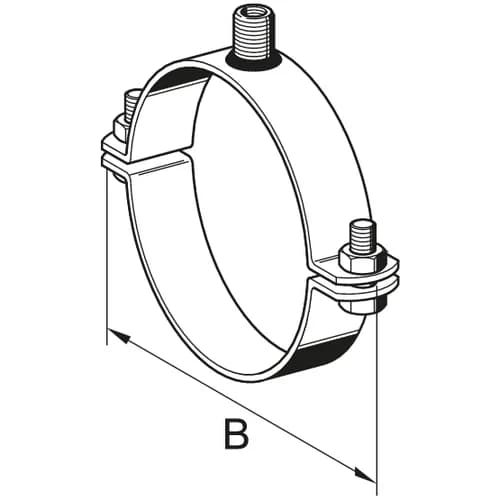

Pipe Clamp STABIL D-3G 222-231 A4
Group: 1740
Part number 172910
Technical Data
H | 266 mm |
D | 231 mm |
B1 | 316 mm |
e | 281 mm |
t | 4 mm |
SL | 40 mm |
Technical specifications
Material base body | Stainless Steel A4 |
Material connecting element | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
