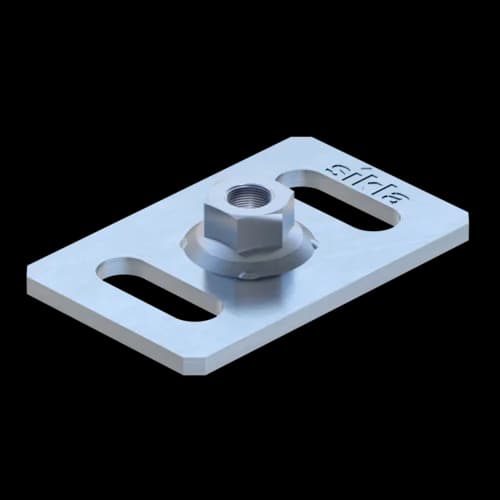

F 80 - M10
HCP
HCP
Group: A438
Part number 113004
Interface component for connecting threaded bar M10 to M16 and threaded tube 1/2' to siFramo TP F80 beam sections
ST versions are solid and intended only for pipe clamp fastening using threaded pipes
BP | 80 mm |
bP | 11 mm |
BP1 | 50 mm |
H | 15 mm |
HP | 50 mm |
IZP | 20 mm |
Mi1 | M10 |
tP | 4 mm |
-VX,perm. | 13,00 kN |
VX,perm. | 13,00 kN |
-VY,perm. | 13,00 kN |
VY,perm. | 13,00 kN |
-VZ,perm. | 8,00 kN |
The threaded pipe used is decisive for the permissible bending moment. Other influences from the fastening (anchor) must be taken into account.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Type Normal: Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.
Type ST: Requires 4 x Self Forming Screw FLS per Mounting Plate GPL. Connection to the channel system with CC 41 threaded plate and hexagon screws. The base plate is also suitable for concrete connections thanks to the two holes.
