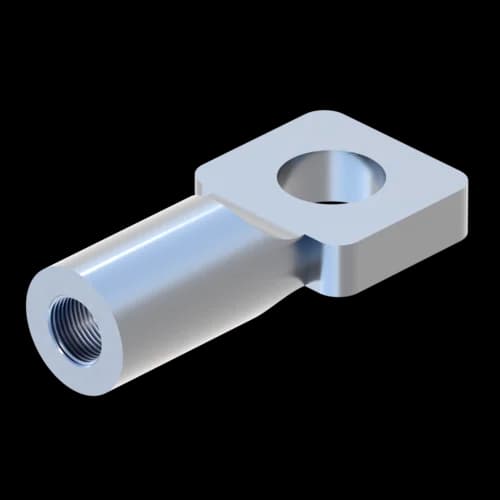

Link Eye SCB RH M 8

Group: 1301

Part number 124221

This is a replacement for Old Productname (Part number 123456).

Technical Data

Technical Data

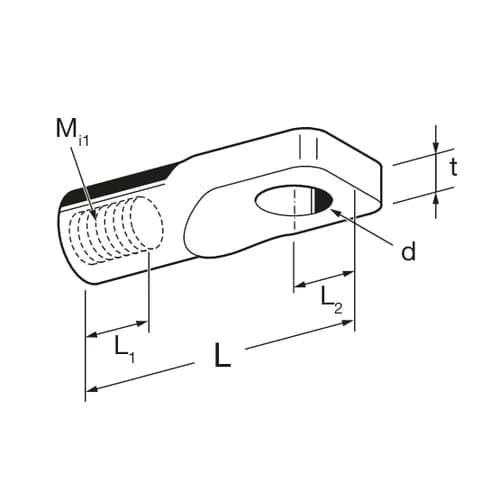

SCB_M.eps

L	46,5 mm
L₁	13 mm
L₂	11 mm
B	22 mm
D	13 mm
t	5,5 mm

Technical specifications

Primary element material	steel
Surface finish	electro galvanized (Fe//Zn)
Corrosion protection class	C2

Certification
