Insulated Foot Plate SHB 300 HCP
Group: 1877
Part number 113118
Integrated footplate provide a solution for the support of building services
Permeable rubber compound mat to provides secure support and even load distribution
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
HCP
HCP
Group: 1877
Part number 113118
Integrated footplate provide a solution for the support of building services
Permeable rubber compound mat to provides secure support and even load distribution

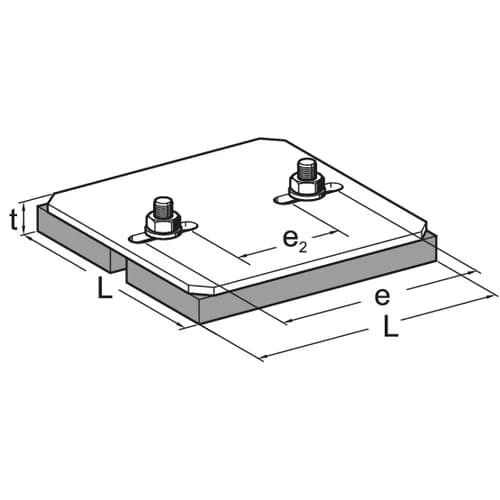

BP1 | 98 mm |
bP | 11 mm |
BS | 308 mm |
HS | 306 mm |
IZP | 33 mm |
Ma | M10 |
tP | 5 mm |
TS | 15 mm |
Fire Performance | Class B2 according to DIN 4102 |
Ultimate tensile strength | 0,40 N/mm² |
Tear resistance | 3,40 N/mm |
Elongation at break | 70 % |
Compression set |
Unscrew the nuts, position the distance between the screws according to the slot pattern of the element to be connected and tighten screws.
Following elements could be assembled to the Insulated Foot Plate: Slide Elements, Mounting Plates, Support Brackets 150/150, Joints JOI 41 T, Channels MS 41, Cantilever Brackets, End Supports WBD for single channel.
The system-related static friction must be determined on site. Depending on the roofing membrane used, the use of an additional separating layer is recommended. The load transfer into the structure must be checked on site.
approx. 4.5 % measured 30 min. after release at 50 % compression / 23°C after 72 hours
Primary element material | steel |
Isolating element material | caoutchouc |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
