Overview of Types
General Information

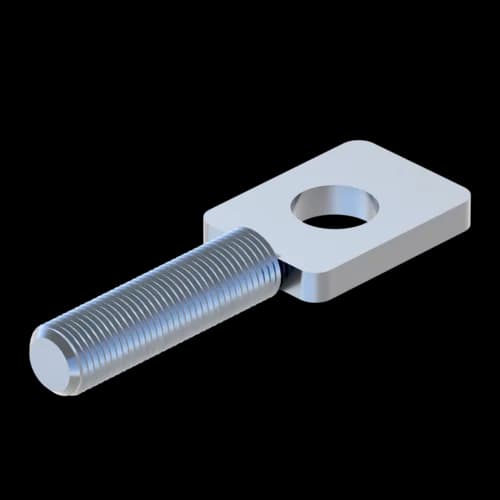

For connecting the Stabil D-A pipe clamp via its clamp lugs and for adapting threaded rods.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
For connecting the Stabil D-A pipe clamp via its clamp lugs and for adapting threaded rods.
Certification
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Info | Type | L | Weight | Quantity | Part number | |
| SCR BS M16x 25 | 62,00 mm | 0,118 kg/pcs. | 25 pcs. | - | ||
| SCR BS M10x 20 | 53,00 mm | 0,033 kg/pcs. | 100 pcs. | - | ||
| SCR BS M12x 40 | 73,00 mm | 0,058 kg/pcs. | 50 pcs. | - | ||
| SCR BS M10x 40 | 73,00 mm | 0,041 kg/pcs. | 50 pcs. | - | ||
| SCR BS M 8x 20 | 53,00 mm | 0,029 kg/pcs. | 100 pcs. | - | ||
| SCR BS M 8x 40 | 73,00 mm | 0,038 kg/pcs. | 100 pcs. | - | ||
