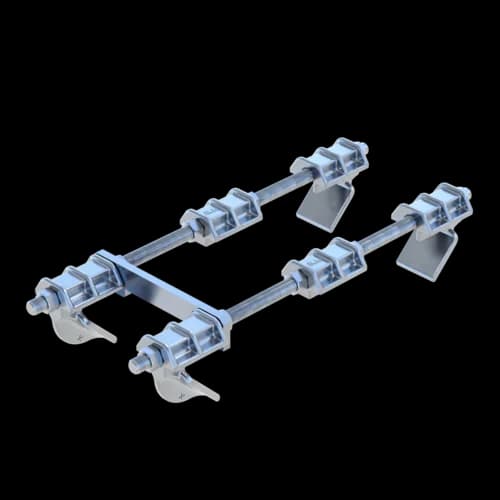

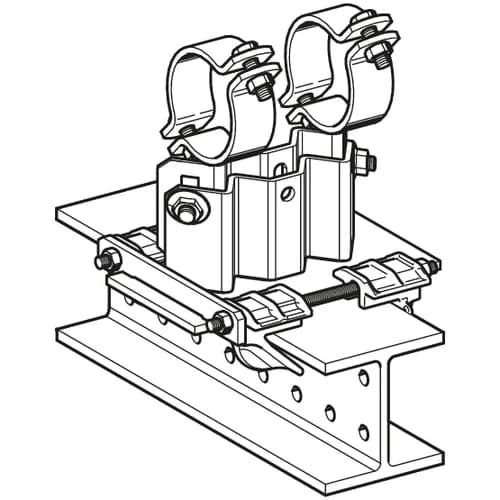

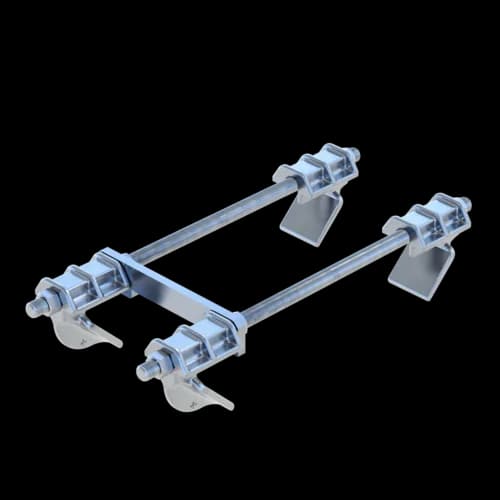

Modification of siMotec Sliding Pipe Shoes to Fixed Point Pipe Shoes on steel beams with flange widths from 80 to 300 mm.
Certification
Material base body | steelcast steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Info | Type | Min. flange width | Weight | Quantity | Part number | |
| XS 80/120 HCP | 80,00 mm | 2,25 kg/pcs. | 1 pcs. | - | ||
| XS 180/220 HCP | 161,00 mm | 2,5 kg/pcs. | 1 pcs. | - | ||
| XS 140/160 HCP | 121,00 mm | 2,4 kg/pcs. | 1 pcs. | - | ||
| XS 280/300 HCP | 261,00 mm | 3,2 kg/pcs. | 1 pcs. | - | ||
| XS 240/260 HCP | 221,00 mm | 2,6 kg/pcs. | 1 pcs. | - | ||
