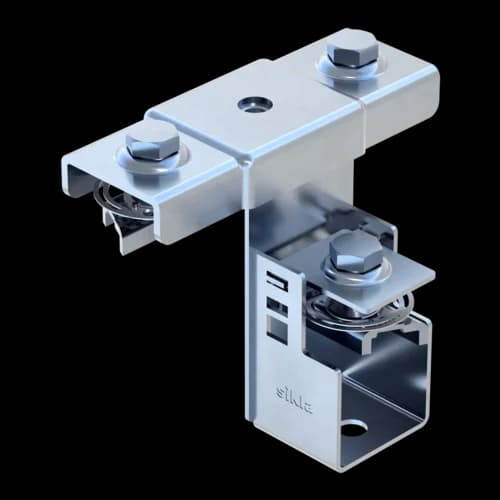

End Tee IR-E

General Information

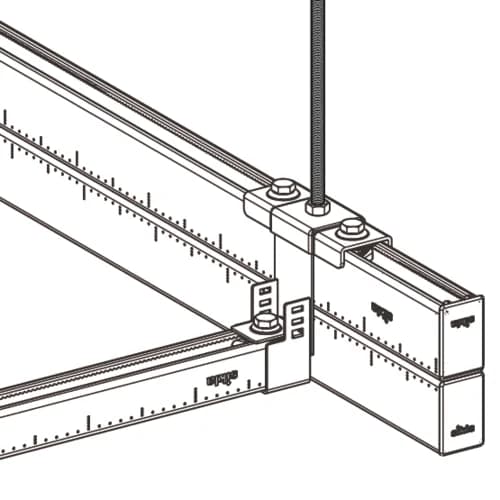

The Cross Tee IR-E is used to create an end connection for installation grids made of Channels 41. In combination with Channels 41 and the Cross Tee IR-M a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary. An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently. Saving time by means of Pressix CC-components. Flexible choice of Channels. Simple modificaton of End and Cross Tees.
