Stainless Steel
Duo Clamp SRS 110-115 A4
Group: 1722
Part number 170684

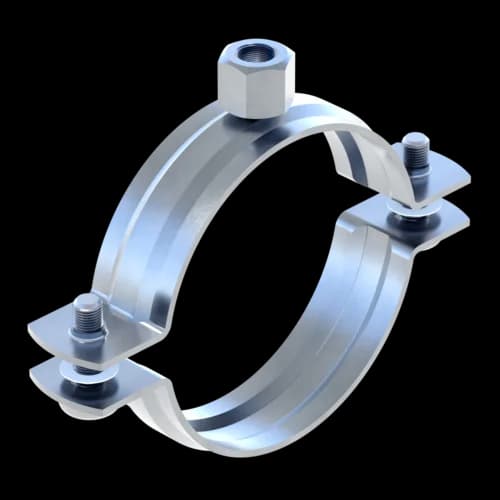

Two-piece clamp with thread connection M8 or M10 for pipeline installation
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Stainless Steel
Group: 1722
Part number 170684
Two-piece clamp with thread connection M8 or M10 for pipeline installation
Supplied with two bolts partially mounted on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidental unscrewing.
-VZ,perm. | 2,50 kN |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Primary element material | Stainless Steel A4 |
Connecting element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Tightening torque: 2 Nm
Certification
