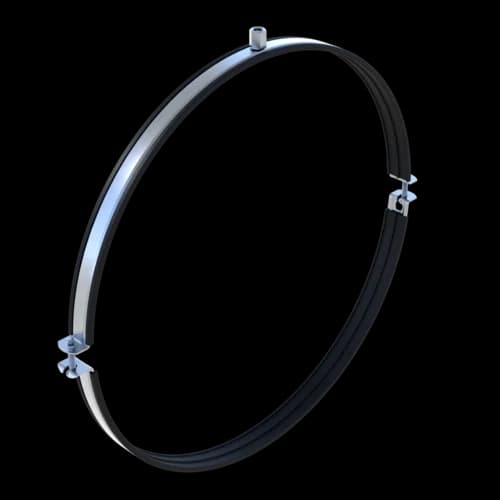

Two-piece pipe clamp for simple installation of spiral-seam ducts. Suitable for soundproof installation according to DIN 4109.
Certification
Material base body | steel |
Material insulation body | SBR/EPDM |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Info | Type | Size max. | DN | Thread connection | Weight | Quantity | Part number | |
| PLU TOP 2G ME DN 160 | 164,20 mm | - | - | 0,195 kg/pcs. | 70 pcs. | - | ||
| PLU TOP 2G ME DN 500 | 507,20 mm | - | - | 0,64 kg/pcs. | 20 pcs. | - | ||
| PLU TOP 2G ME DN 224 | 230,20 mm | - | - | 0,306 kg/pcs. | 50 pcs. | - | ||
| PLU TOP 2G ME DN 315 | 322,20 mm | - | - | 0,42 kg/pcs. | 40 pcs. | - | ||
| PLU TOP 2G ME DN 450 | 457,20 mm | - | - | 0,58 kg/pcs. | 20 pcs. | - | ||
| PLU TOP 2G ME DN 355 | 362,20 mm | - | - | 0,46 kg/pcs. | 40 pcs. | - | ||
| PLU TOP 2G ME DN 250 | 255,20 mm | - | - | 0,339 kg/pcs. | 40 pcs. | - | ||
| PLU TOP 2G ME DN 180 | 184,20 mm | - | - | 0,212 kg/pcs. | 50 pcs. | - | ||
| PLU TOP 2G ME DN 200 | 202,20 mm | - | - | 0,226 kg/pcs. | 50 pcs. | - | ||
| PLU TOP 2G ME DN 400 | 407,20 mm | - | - | 0,52 kg/pcs. | 30 pcs. | - | ||
| PLU TOP 2G ME DN 150 | 152,20 mm | - | - | 0,183 kg/pcs. | 70 pcs. | - | ||
| PLU TOP 2G ME DN 125 | 127,20 mm | - | - | 0,158 kg/pcs. | 100 pcs. | - | ||
| PLU TOP 2G ME DN 140 | 141,20 mm | - | - | 0,17 kg/pcs. | 70 pcs. | - | ||
| PLU TOP 2G ME DN 300 | 307,20 mm | - | - | 0,38 kg/pcs. | 40 pcs. | - | ||
| PLU TOP 2G ME DN 280 | 284,20 mm | - | - | 0,36 kg/pcs. | 40 pcs. | - | ||
| PLU TOP 2G ME DN 112 | 114,20 mm | - | - | 0,148 kg/pcs. | 100 pcs. | - | ||
| PLU TOP 2G ME DN 90 | 91,20 mm | - | - | 0,13 kg/pcs. | 50 pcs. | - | ||
| PLU TOP 2G ME DN 80 | 81,20 mm | - | - | 0,121 kg/pcs. | 50 pcs. | - | ||
| PLU TOP 2G ME DN 100 | 102,20 mm | - | - | 0,142 kg/pcs. | 100 pcs. | - | ||
| PLU TOP 2G ME DN 71 | 72,20 mm | - | - | 0,108 kg/pcs. | 50 pcs. | - | ||
