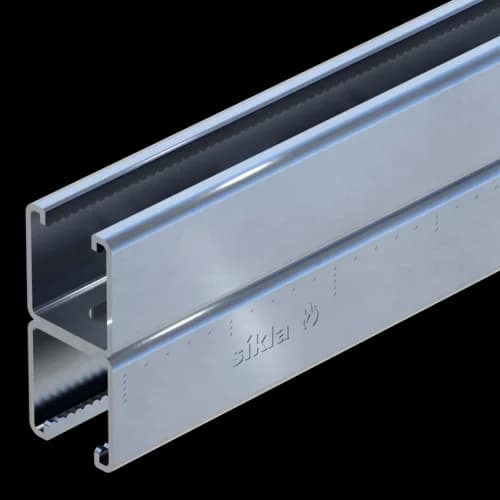

Channel MS 41/45/2,5 D 6M
Group: 1111
Part number 193839
Versatile element for technical building equipment and industrial plant construction
Ideal for realising crossbeams for higher loads
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
41/45 D
galvanized
galvanized
galvanized
galvanized
Group: 1111
Part number 193839
Versatile element for technical building equipment and industrial plant construction
Ideal for realising crossbeams for higher loads
B | 41 mm |
b | 13 mm |
C | 62,5 mm |
H | 90 mm |
lz | 27 mm |
t | 2,5 mm |
Double channels are joined together by clinching, guaranteeing corrosion protection at the joining.
VZ,perm. | 6,00 kN |
MX,perm. | 0,04 kNm |
Elastic modulus Wy | 10,48 cm³ |
Elastic modulus Wz | 9,52 cm³ |
Second moment of area Iy | 47,18 cm^4 |
Second Moment of Area Iz | 19,51 cm^4 |
Radius of gyration iy | 2,70 cm |
Radius of gyration iz |
Note: All values refer to slotted channels.
Permissible stress σ{perm.} | 185,00 N/mm² |
Permissible yield strength fy,perm. | 285,00 N/mm² |
Primary element material | steel |
Surface finish | pre-galavanised |
Corrosion protection class | C2 |
For further technical data, see the pages in the download area.
All channels of the 41 series are serrated inside and provide numerous combination options with other stainless steel system components.
1,73 cm
Torsional constant It | 0,11 cm^4 |
Cross-sectional Area A | 6,46 cm² |
