Brace Joint SG M10 -13
Group: 1342
Part number 115045
This is a replacement for Old Productname (Part number 123456).

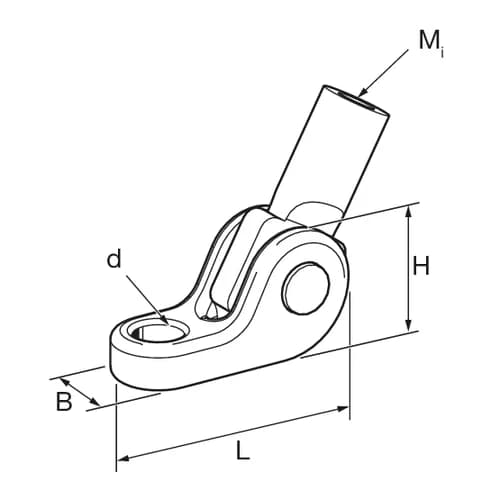

Technical Data
H | 28 mm |
B | 22 mm |
L | 54 mm |
L1 | 31 mm |
D | 13 mm |
Load range
Vmax α = 0° - 45° | 16,00 kN |
Vmax α = 90° | 6,00 kN |
Technical specifications
Primary element material | cast steel |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
