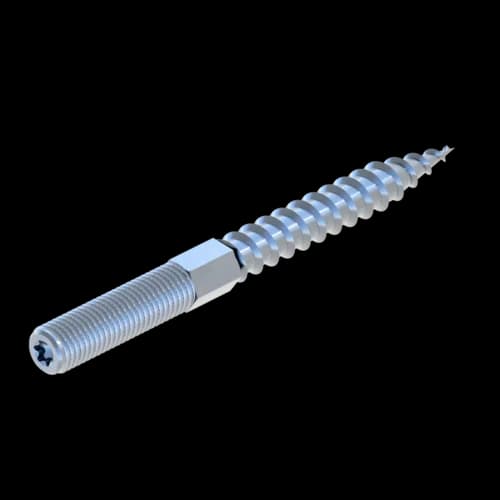

Bolt Screw BSCR M10/180

Group: 1315

Part number 131522

This is a replacement for Old Productname (Part number 123456).

Technical Data

Technical Data

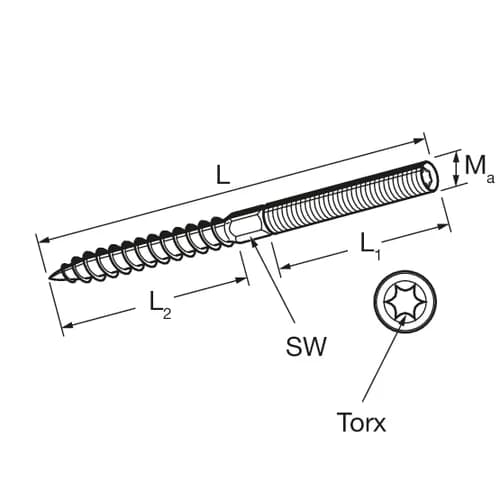

BSCR_M.eps

L	180 mm
L₁	50 mm
L₂	57 mm
SW	8 mm

Technical specifications

Primary element material	steel
Surface finish	electro galvanized (Fe//Zn)
Corrosion protection class	C2

Certification
