TPH F100/80 C
HCP
HCP
HCP
HCP
Group: A825
Part number 113085

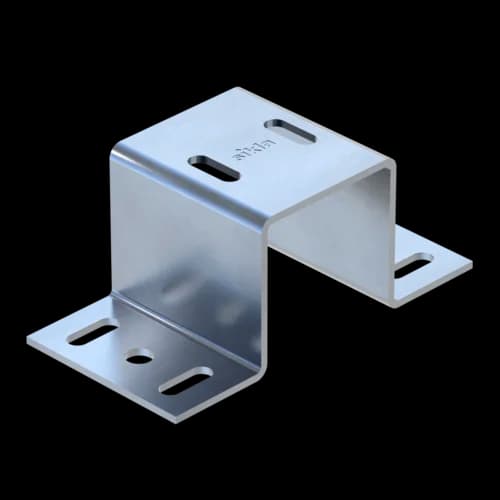

Form-fitting, reinforcing bracket for Beam Section TP F 100
Mounting directly to the building structure or directly to the free-standing or concret-embedded profile

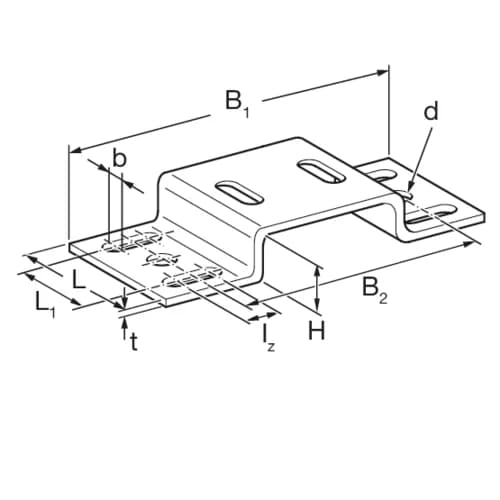

b | 11 mm |
B1 | 199 mm |
B2 | 149 mm |
d | 14 mm |
H | 80 mm |
L | 100 mm |
L1 | 62 mm |
lz | 20 mm |
t | 4 mm |
-VX,perm. | 16,70 kN |
VX,perm. | 16,70 kN |
-VY,perm. | 29,10 kN |
VY,perm. | 29,10 kN |
-VZ,perm. | 18,80 kN |
VZ,perm. |
The specified load values are permissible loads and contain the partial safety factors γ(M2) = 1,25 (DIN EN 1993-1-8:2010-12, chart 2.1) and γ(G) = 1,35 (DIN EN 1990:2010-12, chart A1.2(B)) for permanent actions.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.

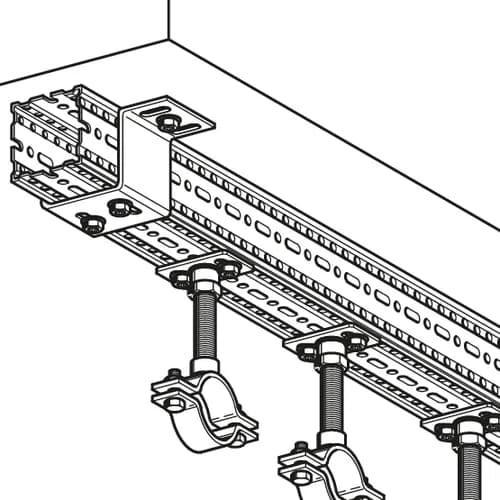

Connecting one Beam Section F100 90° to another one by using 6 x Self Forming Screw FLS applied through all elongated holes.
Connecting to any other surface or member by using 2 x Self Forming Screws FLS through the two elongated holes on the top of the Beam Section Holder TPH F80 plus 2 appropriate fixing elements up to M12 through the two holes “d1”.
18,80 kN
-MY,perm. | 0,8 kNm |
MY,perm. | 0,8 kNm |
-MZ,perm. | 0,7 kNm |
MZ,perm. | 0,7 kNm |
Certification
