Assembly Set MS 5P M12 S HCP
Group: A640
Part number 115843
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
HCP
HCP
HCP
HCP
HCP
Group: A640
Part number 115843
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section
Beam Clip SPA 5P AU - abZ Z-14.4-784
PDF (866 KB)
Static Guideline - siMotec
PDF (8.58 MB)

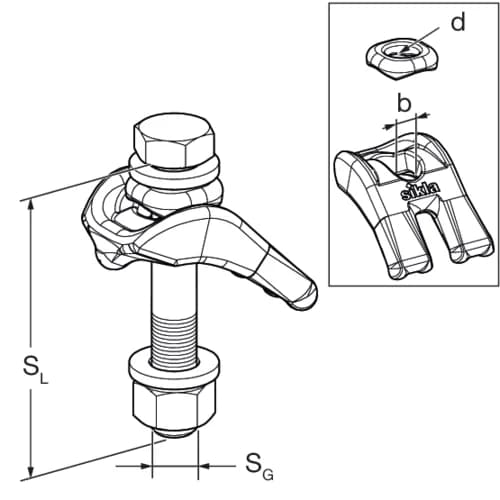

b | 13 mm |
d | 13 mm |
SG | M12 |
SL | 80 mm |
4x Beam Climps M12
4x Support plate M12
4x HR trimming M12 x 80
HR trimming according EN 14399-3 consisting of: Hexagon bolt M12, 2 washers, 1 hexagon nut
-VY,perm. | 26,30 kN |
VY,perm. | 26,30 kN |
-VZ,perm. | 12,00 kN |
VZ,perm. | 12,00 kN |
The specified F(z) data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µ(adhesion) = 0,20.
A possibly operating tensile force F(y) isn't included.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
1. Position Beam Clip with the split end on beam section.
2. Install support plate and HR trimming and tighten accordingly.
The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the HR trimming a continuous and predictable preload force is guaranteed.
Tightening torques:
| Type | Size range [mm] | Tightening torque MA [Nm] / plus revolution |
|---|---|---|
| M12 S | 1 - 30 | 60 / 90° |
| M16 S | 4 - 40 | 140 / 90° |
