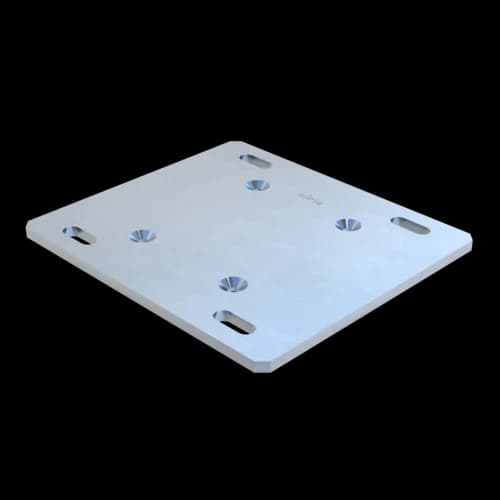

Adapter Plate AP 201/240 HCP
Group: A630
Part number 116534
Enables the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120
Suitable for primary steel with flange width greater than 120 mm
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
201/240
HCP
HCP
HCP
HCP
Group: A630
Part number 116534
Enables the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120
Suitable for primary steel with flange width greater than 120 mm
BP | 360 mm |
bP | 18 mm |
HP | 320 mm |
HP1 | 260 mm |
IZP | 30 mm |
tP | 12 mm |
Joining Plate AP
4 Countersink Screws M12 x 40
4 Hexagon Nuts M12
4 Sicherungsscheiben
Primary element material | steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
Connect the Adapter Plate AP to the Beam Bracket TKO’s end plate by using the accessories above. Then continue with either heavy-duty anchors or Assembly Set 5P/Beam Clips as required by the building structure.
| Type | Perforation for | Connection to flange width [mm] |
|---|---|---|
| AP 121/160 | M12 | 121 - 160 |
| AP 161/200 | M16 | 161 - 200 |
| AP 201/240 | M16 | 201 - 240 |
| AP 241/310 | M16 | 241 - 310 |
