Group: 1314
Part number 110007

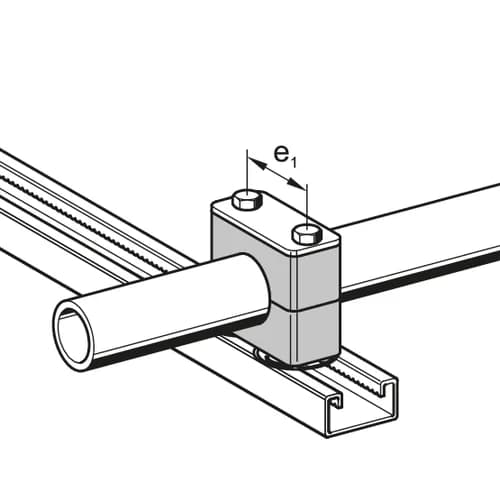

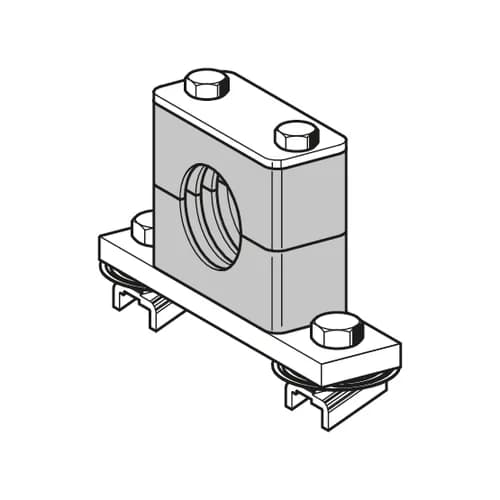

Enables efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41
Ideal for vertical channels or hard-to-access positions, replacing the “third hand”
Compatible with all Sikla Channels MS 41; prevents screw heads from sticking and ensures flush fixation after tightening
Mi1 | M12 |

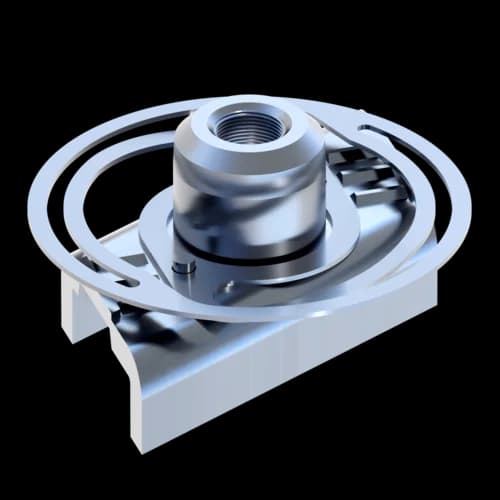

Channel nut, spring and thread connection pre-assembled.
Primary element material | steel |
Connecting element material | Spring steel, stainless |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |

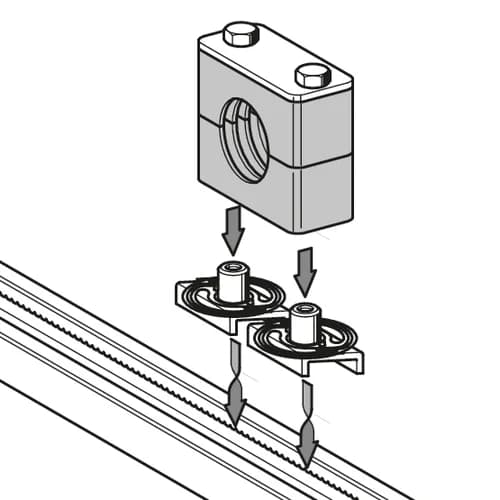

After inserting the Adapter CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.
Certification
