electro galvanized
electro galvanized
Group: 1399
Part number 193983
Universally applicable sound absorption element for higher loads
Suitable for sound-decoupled fastenings for sound insulation requirements, including those specified in DIN 4109
Ideal for sound isolation of constructions made of Channels 41 or electrical equipment such as pumps or ventilators
VZ,perm. | 0,70 kN |
Min. spring travel | 0,5 mm |
Max. spring travel | 2,6 mm |
Hardness | 45 +/-5° Shore |
Primary element material | steel |
Isolating element material | caoutchouc |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |

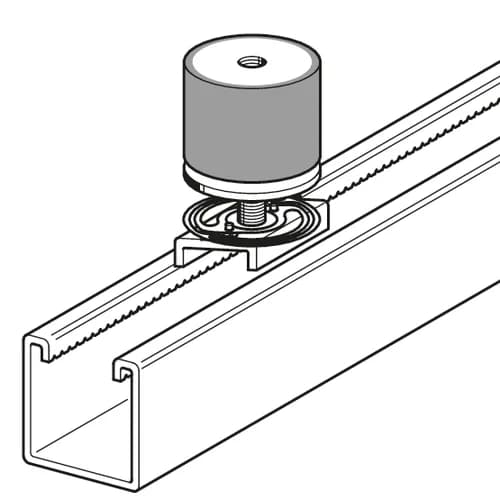

Assembly in Channel 41 by means of Washer 8/40 and Speed Nut M8. The Acoustics Element is designed for pressure loads. Installation with dominant tensile loading or shear stress has to be avoided.
For these exceptional cases the load pressure has to be reduced to 1/3.
Certification
