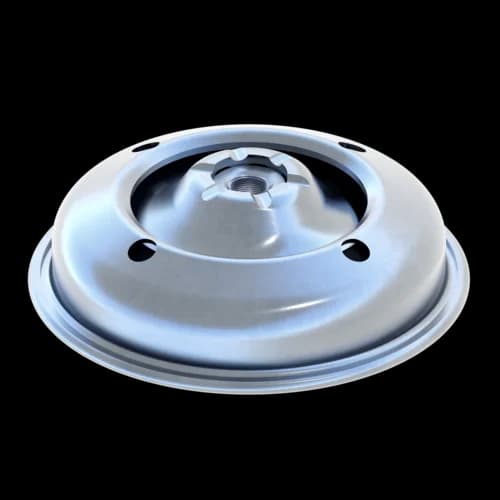

Sound Absorber SDE 1
Group: 1612
This is a replacement for Old Productname (Part number 123456).
Login to see prices and availabilities
Login or registerOverview of Types
General Information
Various applicable sound absorption element with M10, M12 or triple thread connection options (also according to DIN 4109). Suitable for overhead, floor and wall mounting purposes in the plant construction.
Certification
Technical specifications
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Insertion isolation | 18,9 dB(A) |
Hardness | 45+/-5° Shore |
Primary element material | steel |
Isolating element material | EPDM |
Surface finish | galvanisch verzinkt (Fe//Zn) |
Corrosion protection class | C2 |
Load range
Type | -VX,perm. | VX,perm. | VY,perm. |
SDE 1 -3G | 2,50 kN | 3,00 kN | 0,50 kN |
