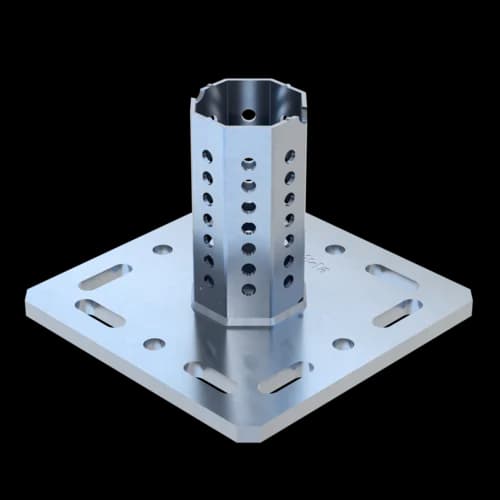

End Support WBD-8KT 80/120-F 80 HCP
Group: A421
Part number 192849
Technical Data
t | 3 mm |
H | 72.5 mm |
Load range
-VX,perm. | 47,00 kN |
VX,perm. | 47,00 kN |
-VY,perm. | 56,80 kN |
VY,perm. | 56,80 kN |
-VZ,perm. | 56,80 kN |
VZ,perm. | 56,80 kN |
-MX,perm. | 2,1 kNm |
MX,perm. | 2,1 kNm |
-MY,perm. | 3,4 kNm |
MY,perm. | 3,40 kNm |
-MZ,perm. | 3,4 kNm |
MZ,perm. | 3,4 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
