Overview of Types
General Information

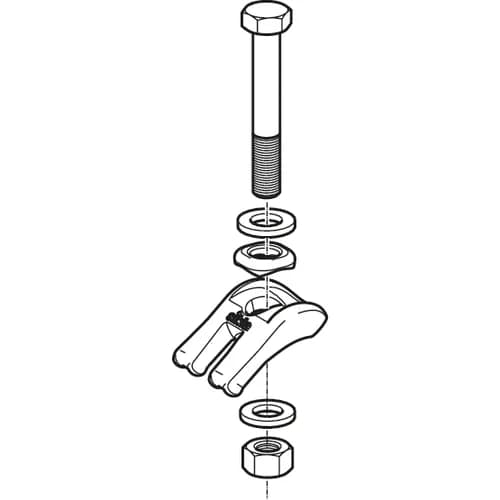

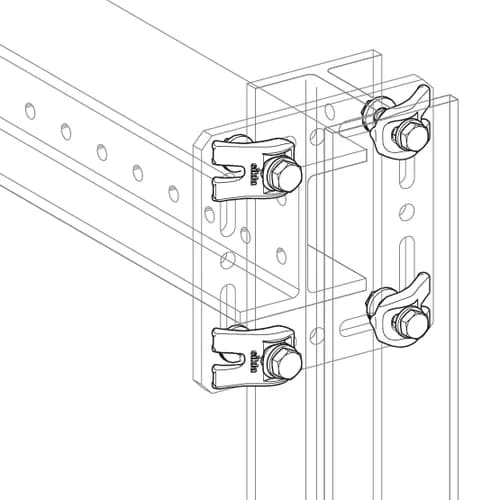

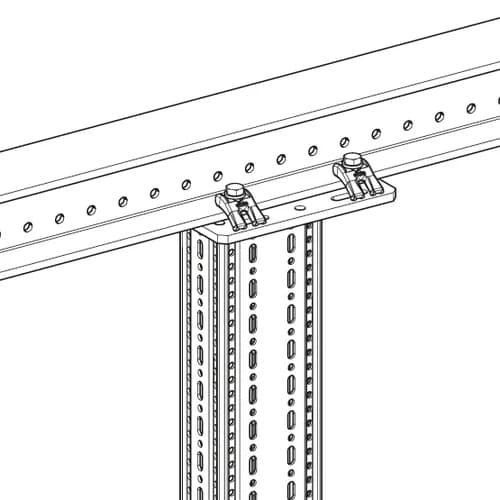

Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range

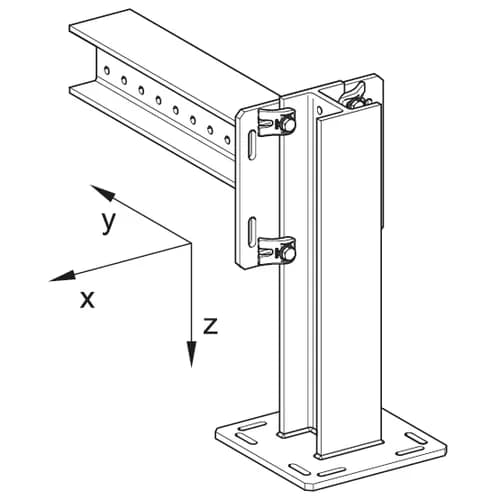

Type | VY,perm. | VZ,perm. |
MS 5P M12 S2 HCP | 32,00 kN | 6,80 kN |
MS 5P M12 S HCP | 26,30 kN | 12,00 kN |
MS 5P M16 S HCP | 32,00 kN | 13,60 kN |
