Overview of Types
General Information

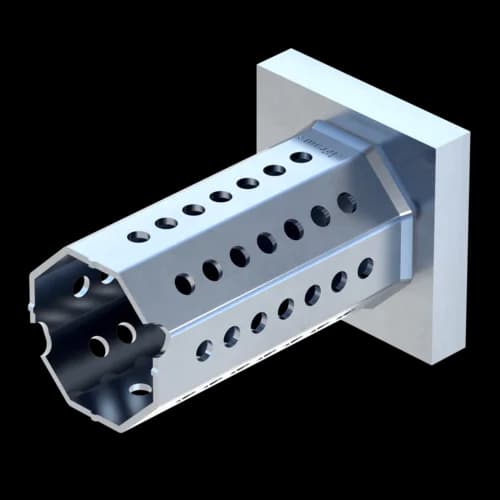

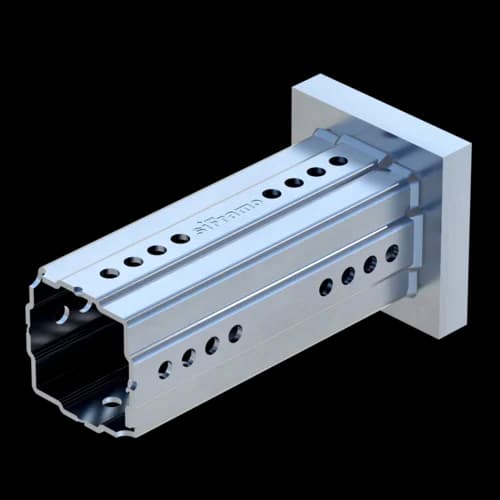

Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
ASA-8KT F 80 HCP | 47,00 kN | 47,00 kN | 56,80 kN | 56,80 kN | 56,80 kN | 56,80 kN |
Type | -MX,perm. | MX,perm. | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
ASA-8KT F 80 HCP | 2,1 kNm | 2,1 kNm | 3,4 kNm | 3,40 kNm | 3,4 kNm | 3,4 kNm |
Software
This product is available in the following software.
